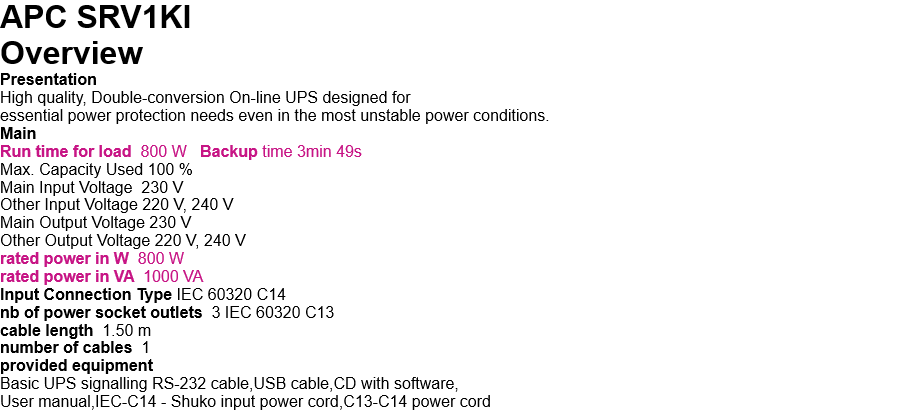

APC SRV1KI ( SRV1000I )
Output
Max Configurable Power (Watts) 800Watts / 1.0kVA
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load 88.0 %
Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
Other Output Voltages 220, 240
Load Crest Factor 3 : 1
Topology Double Conversion Online
Waveform type Sine wave
Bypass Internal Bypass (Automatic and Manual)
Output connection (3)IEC 320 C13 ( Battery backup )
Input
Input frequency 40 - 70 Hz
Input voltage range for main operations 160 - 280V
Input voltage adjustable range for mains operation 110 - 285 (half load)V
Number of Power Cords 1
Efficiency at Full Load 88.0 %
Other Input Voltages 220, 240
Batteries
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Included Battery Modules 1
Typical recharge time 4hour(s)
Battery Charge Power (Watts) 38Watts
Battery Volt-Amp-Hour Capacity 152
Communications & Management
Interface Port(s) DB-9 RS-232, USB
Control panel Multi-function LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency Power Off (EPO)
Available SmartSlot Interface Quantity 1
Surge Protection and Filtering
Surge energy rating 600Joules
Physical
Maximum Height 223MM,Width145MM, Depth 288MM
Net Weight 9.3KG
Color Black
Environmental
Operating Temperature 0 - 40 ฐC
Audible noise at 1 meter from surface of unit 50.0dBA
Protection Class IP 20
Conformance
Approvals
CE, IEC 62040-1-1, IEC 62040-1-2
Standard warranty
2 years warranty onsite service
