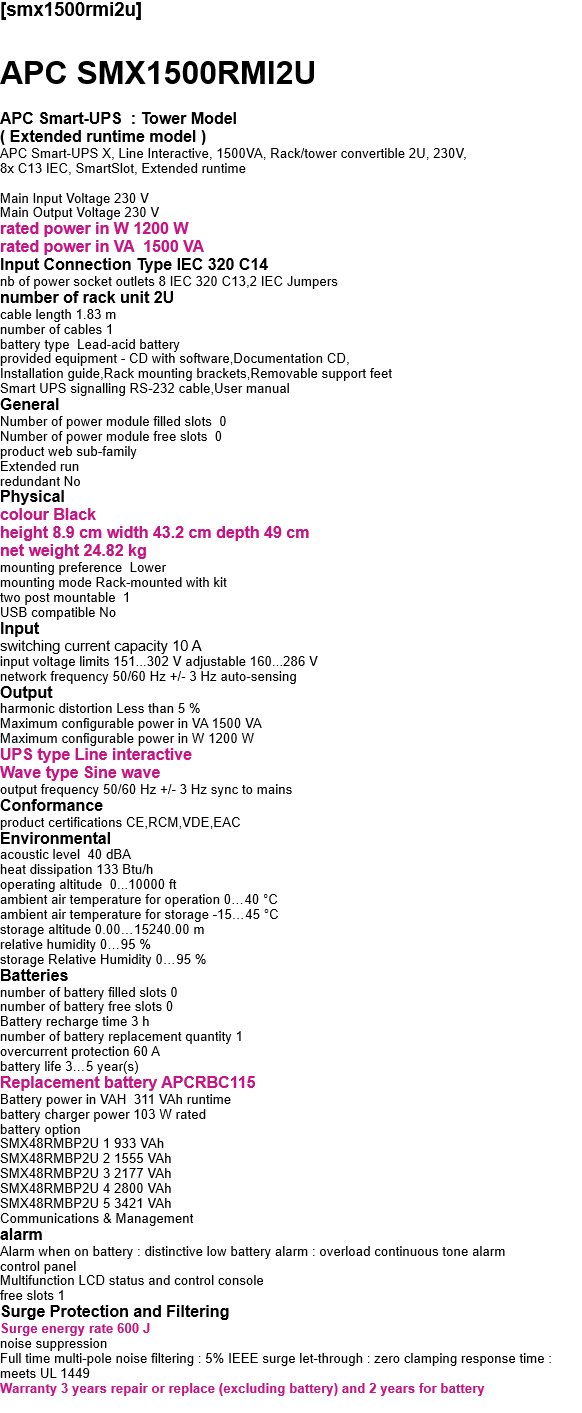

PART NUMBER

SMX1500RMI2U

APC Smart-UPS : Tower Model
( Extended runtime model )

APC Smart-UPS X, Line Interactive, 1500VA,
Rack/tower convertible 2U, 230V,
8x C13 IEC, SmartSlot, Extended runtime

Main Input Voltage 230 V
Main Output Voltage 230 V
rated power in W 1200 W
rated power in VA 1500 VA

Input Connection Type IEC 320 C14

nb of power socket outlets 8 IEC 320 C13,2 IEC Jumpers

number of rack unit 2U

cable length 1.83 m
number of cables 1
battery type Lead-acid battery
provided equipment - CD with software,Documentation CD,
Installation guide,Rack mounting brackets,Removable support feet
Smart UPS signalling RS-232 cable,User manual

General

Number of power module filled slots 0
Number of power module free slots 0
product web sub-family
Extended run
redundant No

Physical

colour Black
height 8.9 cm width 43.2 cm depth 49 cm
net weight 24.82 kg
mounting preference Lower
mounting mode Rack-mounted with kit
two post mountable 1
USB compatible No

Input

switching current capacity 10 A
input voltage limits 151...302 V adjustable 160...286 V
network frequency 50/60 Hz +/- 3 Hz auto-sensing

Output

harmonic distortion Less than 5 %
Maximum configurable power in VA 1500 VA
Maximum configurable power in W 1200 W
UPS type Line interactive
Wave type Sine wave
output frequency 50/60 Hz +/- 3 Hz sync to mains

Conformance

product certifications CE,RCM,VDE,EAC

Environmental

acoustic level 40 dBA
heat dissipation 133 Btu/h
operating altitude 0...10000 ft
ambient air temperature for operation 0…40 °C
ambient air temperature for storage -15…45 °C
storage altitude 0.00…15240.00 m
relative humidity 0…95 %
storage Relative Humidity 0…95 %

เครื่องสำรองไฟ apc smx1500rmi2u เป็นเครื่องสำรองไฟ ที่มีขนาด 2U เป็นได้ทั้งแบบตั้งและแบบแนวนอน (tower/rack) ระบบไฟเป็นแบบ line interactive มีขนาด 1500va1200watts มี output ด้านหลังเครื่องจำนวน 8 ช่อง apc smx1500rmi2u สามารถเพิ่มระยะเวลาการสำรองไฟ ( extend runtime ) รายละเอียดเพิ่มเติมสามารถติดต่อได้เลยค่ะ

Batteries

number of battery filled slots 0
number of battery free slots 0
Battery recharge time 3 h
number of battery replacement quantity 1
overcurrent protection 60 A
battery life 3…5 year(s)
Replacement battery APCRBC115
Battery power in VAH 311 VAh runtime
battery charger power 103 W rated
battery option
SMX48RMBP2U 1 933 VAh
SMX48RMBP2U 2 1555 VAh
SMX48RMBP2U 3 2177 VAh
SMX48RMBP2U 4 2800 VAh
SMX48RMBP2U 5 3421 VAh
Communications & Management

alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
control panel
Multifunction LCD status and control console
free slots 1

Surge Protection and Filtering

Surge energy rate 600 J
noise suppression
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
