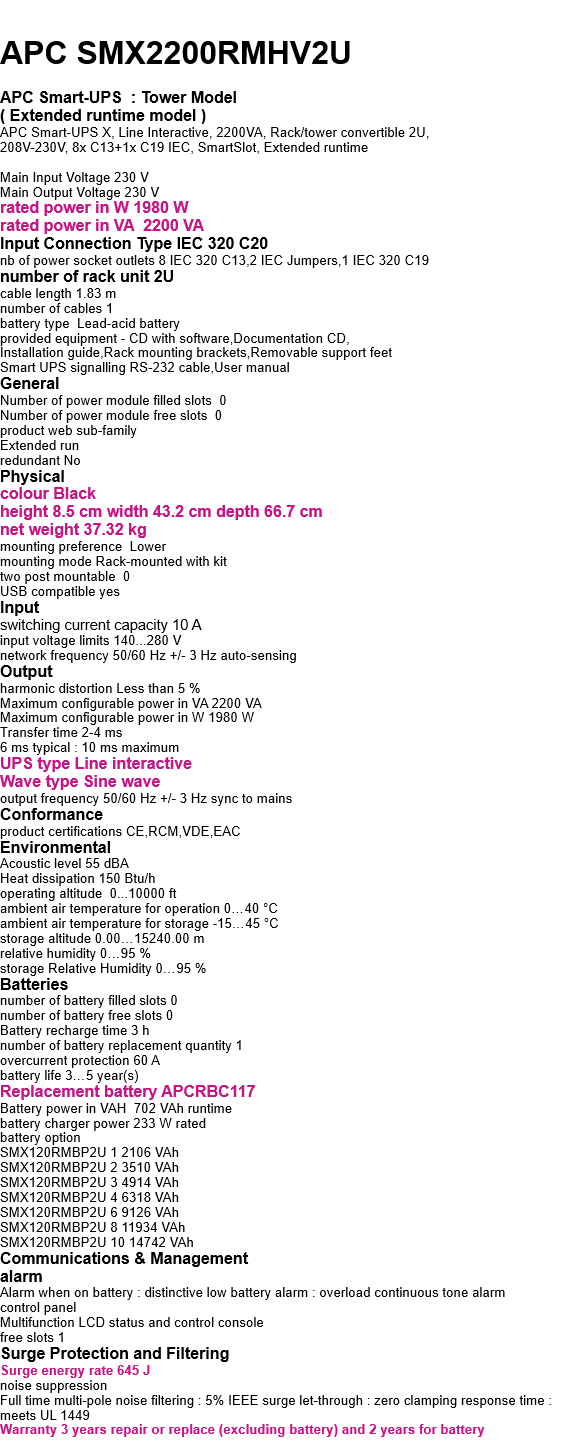

APC SMX2200RMHV2U

APC Smart-UPS : Tower Model
( Extended runtime model )

APC Smart-UPS X, Line Interactive, 2200VA,
Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC,
SmartSlot, Extended runtime

Main Input Voltage 230 V
Main Output Voltage 230 V
rated power in W 1980 W
rated power in VA 2200 VA

Input Connection Type IEC 320 C20

nb of power socket outlets 8 IEC 320 C13,2 IEC Jumpers,
1 IEC 320 C19

number of rack unit 2U

cable length 1.83 m
number of cables 1
battery type Lead-acid battery
provided equipment - CD with software,Documentation CD,
Installation guide,Rack mounting brackets,Removable support feet
Smart UPS signalling RS-232 cable,User manual

General

Number of power module filled slots 0
Number of power module free slots 0
product web sub-family
Extended run
redundant No

Physical

colour Black
height 8.5 cm width 43.2 cm depth 66.7 cm
net weight 37.32 kg
mounting preference Lower
mounting mode Rack-mounted with kit
two post mountable 0
USB compatible yes

Input

switching current capacity 10 A
input voltage limits 140...280 V
network frequency 50/60 Hz +/- 3 Hz auto-sensing

Output

harmonic distortion Less than 5 %
Maximum configurable power in VA 2200 VA
Maximum configurable power in W 1980 W
Transfer time 2-4 ms
6 ms typical : 10 ms maximum
UPS type Line interactive
Wave type Sine wave
output frequency 50/60 Hz +/- 3 Hz sync to mains

Conformance

product certifications CE,RCM,VDE,EAC

Environmental

Acoustic level 55 dBA
Heat dissipation 150 Btu/h
operating altitude 0...10000 ft
ambient air temperature for operation 0…40 °C
ambient air temperature for storage -15…45 °C
storage altitude 0.00…15240.00 m
relative humidity 0…95 %
storage Relative Humidity 0…95 %

เครื่องสำรองไฟ apc smx2200rmhv2u เป็นเครื่องสำรองไฟ ที่เหมาะกับอุปกรณ์ computer, server และอุปกรณ์ทางการแพทย์ ตัวเครื่องเป็นได้ทั้ง แนวตั้งและแนวนอน ( tower/rack) กำลังไฟของเครื่องรุ่นนี้ 2200va 1980 watts เป็นแบบ line interactive ขนาดของเครื่อง 2U ปลั๊กด้านหลังเครื่องมี 8 ช่อง การรับประกัน 3 ปี onsite service ทั่วประเทศ

Batteries

number of battery filled slots 0
number of battery free slots 0
Battery recharge time 3 h
number of battery replacement quantity 1
overcurrent protection 60 A
battery life 3…5 year(s)
Replacement battery APCRBC117
Battery power in VAH 702 VAh runtime
battery charger power 233 W rated
battery option
SMX120RMBP2U 1 2106 VAh
SMX120RMBP2U 2 3510 VAh
SMX120RMBP2U 3 4914 VAh
SMX120RMBP2U 4 6318 VAh
SMX120RMBP2U 6 9126 VAh
SMX120RMBP2U 8 11934 VAh
SMX120RMBP2U 10 14742 VAh

Communications & Management

alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
control panel
Multifunction LCD status and control console
free slots 1

Surge Protection and Filtering

Surge energy rate 645 J
noise suppression
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
