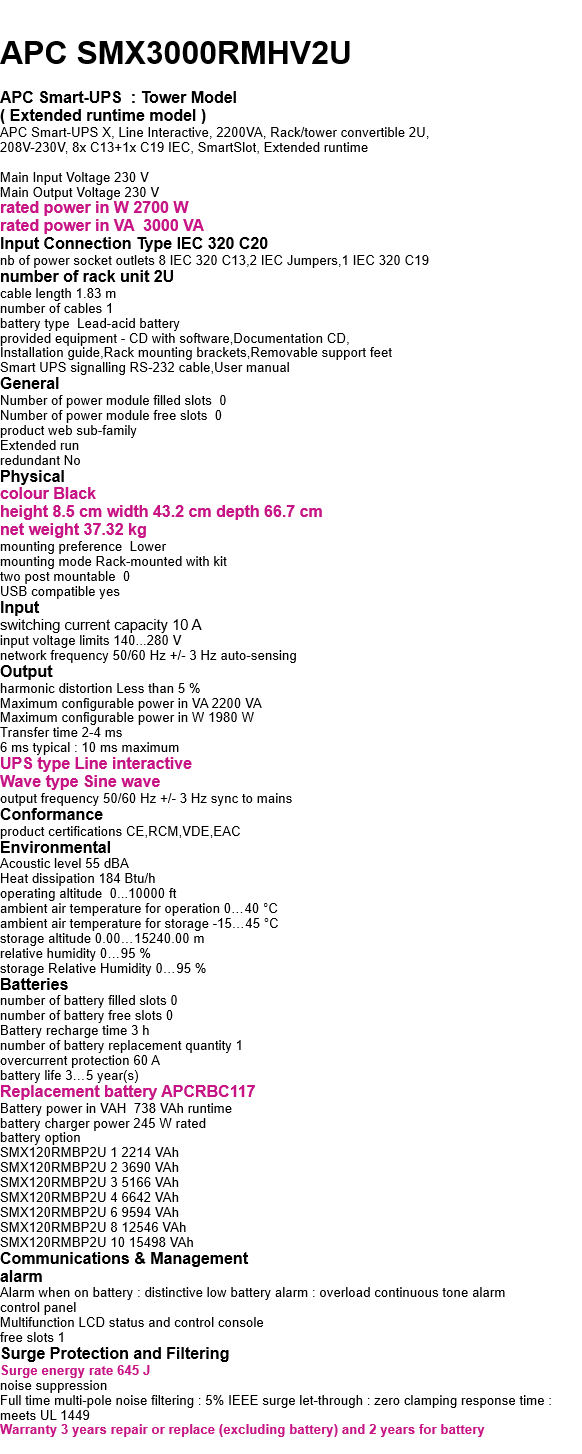

APC SMX3000RMHV2U
Protect servers, switches, networking devices, and point-of-sale equipment with the APC Smart-UPS X 3000VA. APC Smart-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With premium protection and simplified management, the 3000VA UPS ensures consistent and reliable connectivity at the most critical moments. With 11 outlets with 2 switched outlet groups and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. Connect to 10 of the SMX120RMBP2U external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). A SmartSlot in the back of the UPS offers the option to add a network management card to remotely manage the UPS over the network (network cards sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. The SMX3000RMHV2U converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. Package contains UPS, CD with software, Documentation CD, Rack mounting brackets, Smart UPS signalling RS-232 cable, USB cable & User manual Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Batteries are user-replaceable.
Protect servers, switches, networking devices, and point-of-sale equipment with the APC Smart-UPS X 3000VA. APC Smart-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With premium protection and simplified management, the 3000VA UPS ensures consistent and reliable connectivity at the most critical moments. With 11 outlets with 2 switched outlet groups and a compatibility with external battery packs, this server UPS provides uninterrupted and scalable battery power to connected electronics. Connect to 10 of the SMX120RMBP2U external battery packs to increase the amount of time the UPS can provide battery power to devices (battery packs sold separately). A SmartSlot in the back of the UPS offers the option to add a network management card to remotely manage the UPS over the network (network cards sold separately). Use the intuitive LCD interface and PowerChute software to configure settings and monitor usage. The SMX3000RMHV2U converts from a tower or stand-alone UPS to a rack mount UPS, offering flexibility in various installations. Package contains UPS, CD with software, Documentation CD, Rack mounting brackets, Smart UPS signalling RS-232 cable, USB cable & User manual Automatic Voltage Regulation (AVR) adjusts voltages ensuring reliable power while preserving battery life. Batteries are user-replaceable.
APC SMX3000RMHV2U
APC Smart-UPS : Tower Model
( Extended runtime model )
APC Smart-UPS X, Line Interactive, 2200VA, Rack/tower convertible 2U, 208V-230V, 8x C13+1x C19 IEC, SmartSlot, Extended runtime
Main Input Voltage 230 V
Main Output Voltage 230 V
rated power in W 2700 W
rated power in VA 3000 VA
Input Connection Type IEC 320 C20
nb of power socket outlets 8 IEC 320 C13,2 IEC Jumpers,1 IEC 320 C19
number of rack unit 2U
cable length 1.83 m
number of cables 1
battery type Lead-acid battery
provided equipment - CD with software,Documentation CD,
Installation guide,Rack mounting brackets,Removable support feet
Smart UPS signalling RS-232 cable,User manual
General
Number of power module filled slots 0
Number of power module free slots 0
product web sub-family
Extended run
redundant No
Physical
colour Black
height 8.5 cm width 43.2 cm depth 66.7 cm
net weight 37.32 kg
mounting preference Lower
mounting mode Rack-mounted with kit
two post mountable 0
USB compatible yes
Input
switching current capacity 10 Ainput voltage limits 140...280 V
network frequency 50/60 Hz +/- 3 Hz auto-sensing
Output
harmonic distortion Less than 5 %
Maximum configurable power in VA 2200 VA
Maximum configurable power in W 1980 W
Transfer time 2-4 ms
6 ms typical : 10 ms maximum
UPS type Line interactive
Wave type Sine wave
output frequency 50/60 Hz +/- 3 Hz sync to mains
Conformance
product certifications CE,RCM,VDE,EAC
Environmental
Acoustic level 55 dBA
Heat dissipation 184 Btu/h
operating altitude 0...10000 ft
ambient air temperature for operation 0…40 °C
ambient air temperature for storage -15…45 °C
storage altitude 0.00…15240.00 m
relative humidity 0…95 %
storage Relative Humidity 0…95 %
Batteries
number of battery filled slots 0
number of battery free slots 0
Battery recharge time 3 h
number of battery replacement quantity 1
overcurrent protection 60 A
battery life 3…5 year(s)
Replacement battery APCRBC117
Battery power in VAH 738 VAh runtime
battery charger power 245 W rated
battery option
SMX120RMBP2U 1 2214 VAh
SMX120RMBP2U 2 3690 VAh
SMX120RMBP2U 3 5166 VAh
SMX120RMBP2U 4 6642 VAh
SMX120RMBP2U 6 9594 VAh
SMX120RMBP2U 8 12546 VAh
SMX120RMBP2U 10 15498 VAh
Communications & Management
alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
control panel
Multifunction LCD status and control console
free slots 1
Surge Protection and Filtering
Surge energy rate 645 J
noise suppression
Full time multi-pole noise filtering : 5% IEEE surge let-through : zero clamping response time : meets UL 1449
Warranty 3 years repair or replace (excluding battery) and 2 years for battery
