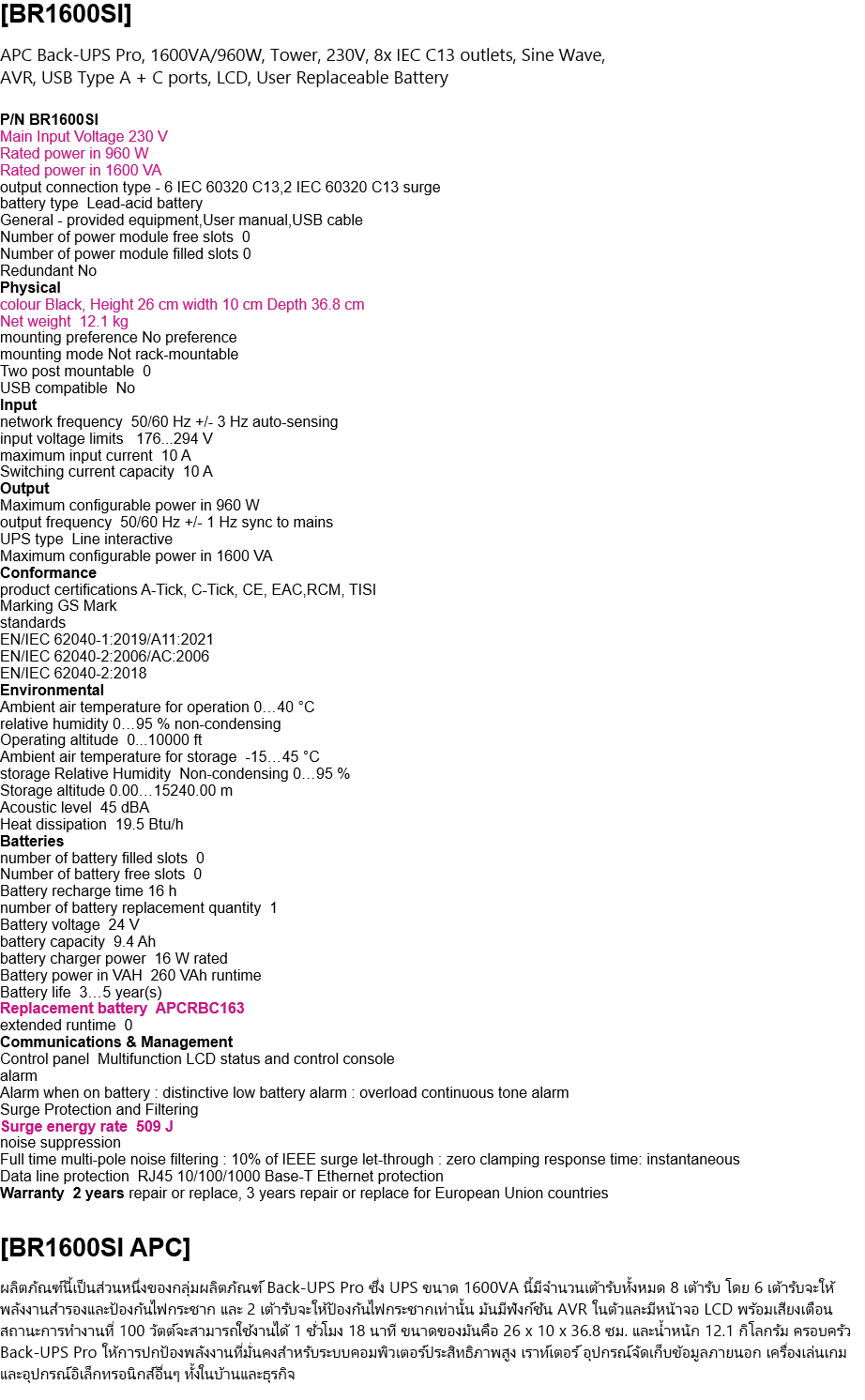

[BR1600SI]
APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, Sine Wave,
AVR, USB Type A + C ports, LCD, User Replaceable Battery
P/N BR1600SI
Main Input Voltage 230 V
Rated power in 960 W
Rated power in 1600 VA
output connection type - 6 IEC 60320 C13,2 IEC 60320 C13 surge
battery type Lead-acid battery
General - provided equipment,User manual,USB cable
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
Physical
colour Black, Height 26 cm width 10 cm Depth 36.8 cm
Net weight 12.1 kg
mounting preference No preference
mounting mode Not rack-mountable
Two post mountable 0
USB compatible No
Input
network frequency 50/60 Hz +/- 3 Hz auto-sensing
input voltage limits 176...294 V
maximum input current 10 A
Switching current capacity 10 A
Output
Maximum configurable power in 960 W
output frequency 50/60 Hz +/- 1 Hz sync to mains
UPS type Line interactive
Maximum configurable power in 1600 VA
Conformance
product certifications A-Tick, C-Tick, CE, EAC,RCM, TISI
Marking GS Mark
standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation 0…40 °C
relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
storage Relative Humidity Non-condensing 0…95 %
Storage altitude 0.00…15240.00 m
Acoustic level 45 dBA
Heat dissipation 19.5 Btu/h
Batteries
number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 16 h
number of battery replacement quantity 1
Battery voltage 24 V
battery capacity 9.4 Ah
battery charger power 16 W rated
Battery power in VAH 260 VAh runtime
Battery life 3…5 year(s)
Replacement battery APCRBC163
extended runtime 0
Communications & Management
Control panel Multifunction LCD status and control console
alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate 509 J
noise suppression
Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Data line protection RJ45 10/100/1000 Base-T Ethernet protection
Warranty 2 years repair or replace, 3 years repair or replace for European Union countries
[BR1600SI APC]
This product is part of the Back-UPS Pro range. This 1600VA UPS has 8 total outlets, 6 outlets provide UPS power backup and surge protection, 2 outlets offer surge protection only. It features a built-in AVR and a LCD interface with audible alarms. Its runtime at 100 Watts is 1 hour 18 minutes. Its dimensions are 26 x 10 x 36.8 cm and 12.1 kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.
![APC BR1600SI [br1600si] - APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, Sine Wave, AVR, USB Type A + C ports, LCD, User Replaceable Battery](images/apc br1600si.jpg)



ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005 080 964 2745
Thailand
ThailandUPS.com
ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
apc br1600si เป็นเครื่องสำรองไฟ ที่มีช่องเสียบหรือปลั๊กด้านหลังของเครื่องค่อนข้างมาก มีถึง 8 ช่องโดยแบ่งเป็น 6 ช่องเสียบ สำหรับสำรองไฟ ส่วนอีก 2 ช่องเสียบไม่สำรองไฟแต่มี surge protection มีไว้ใช้กับ เครื่องพิมพ์ laser และอุปกรณ์ที่ไม่ต้องการ สำรองไฟ แต่แค่ต้องการกันไฟกระชาก apc br1600mi หน้าจอเป็น LCD แสดงสถานะต่างๆ และมีเสียงเตือนในสถานนะ ต่างๆ เช่นกัน - apc br1600si และ apc br1600mi มีคุณสมบัติ และรายละเอียดค่อนข้างจะใกล้เคียงกัน แต่ apc br1600si จะสามารถสำรองไฟได้นานกว่า เนื่องจาก battery capacity, battery charger power, battery power in VAH ต่างกัน apc br1600si มีขนาดหรือ ความจุ ที่มากกว่า สอบถามรายละเอียดเพิ่มเติมได้ที่นี้ เลยนะค่ะ
