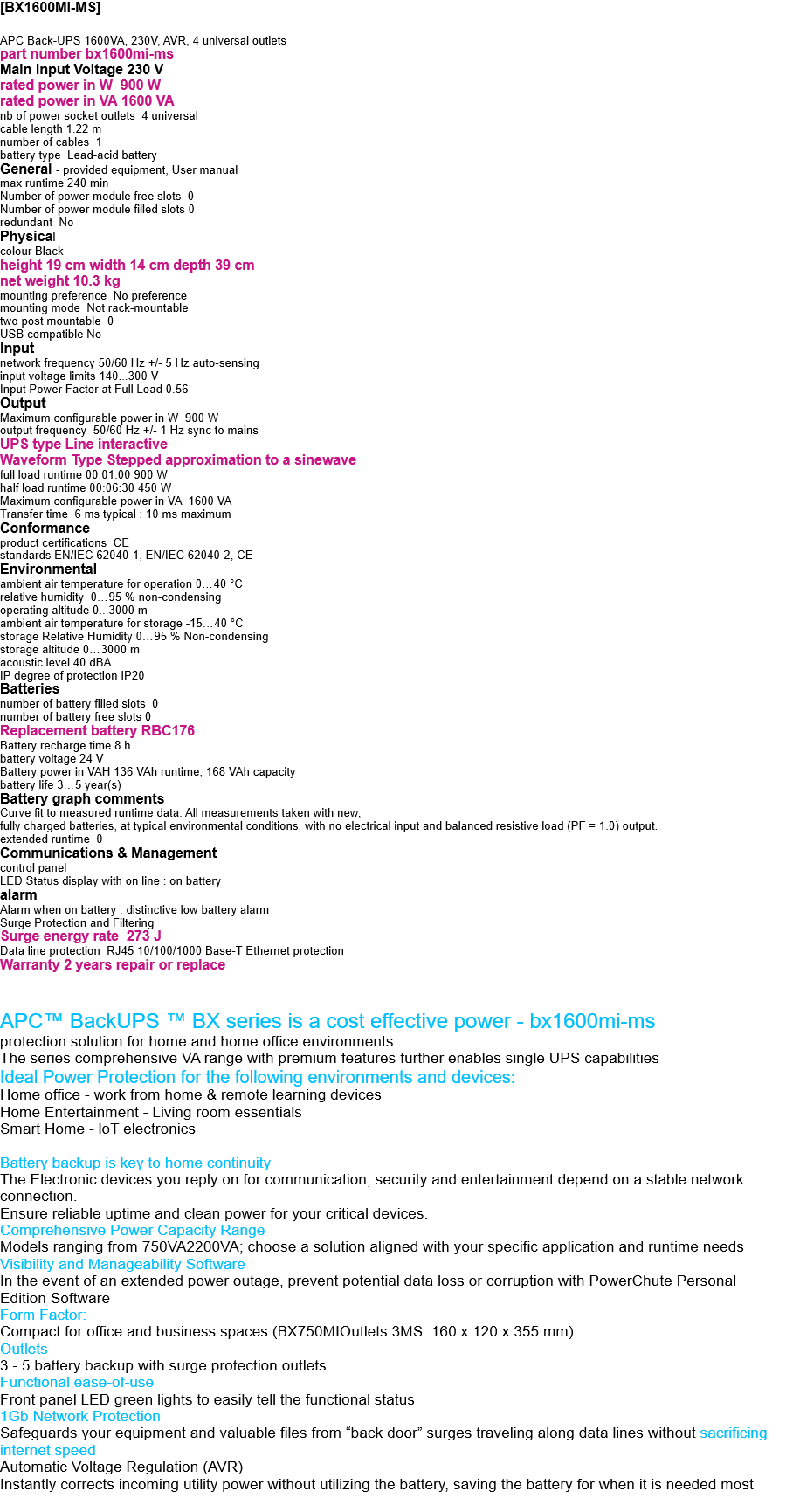

[BX1600MI-MS]
APC Back-UPS 1600VA, 230V, AVR, 4 universal outlets
part number bx1600mi-ms
Main Input Voltage 230 V
rated power in W 900 W
rated power in VA 1600 VA
nb of power socket outlets 4 universal
cable length 1.22 m
number of cables 1
battery type Lead-acid battery
General
- provided equipment, User manual
max runtime 240 min
Number of power module free slots 0
Number of power module filled slots 0
redundant No
Physica
l
colour Black
height 19 cm width 14 cm depth 39 cm
net weight 10.3 kg
mounting preference No preference
mounting mode Not rack-mountable
two post mountable 0
USB compatible No
Input
network frequency 50/60 Hz +/- 5 Hz auto-sensing
input voltage limits 140...300 V
Input Power Factor at Full Load 0.56
Output
Maximum configurable power in W 900 W
output frequency 50/60 Hz +/- 1 Hz sync to mains
UPS type Line interactive
Waveform Type Stepped approximation to a sinewave
full load runtime 00:01:00 900 W
half load runtime 00:06:30 450 W
Maximum configurable power in VA 1600 VA
Transfer time 6 ms typical : 10 ms maximum
Conformance
product certifications CE
standards EN/IEC 62040-1, EN/IEC 62040-2, CE
Environmental
ambient air temperature for operation 0…40 °C
relative humidity 0…95 % non-condensing
operating altitude 0...3000 m
ambient air temperature for storage -15…40 °C
storage Relative Humidity 0…95 % Non-condensing
storage altitude 0…3000 m
acoustic level 40 dBA
IP degree of protection IP20
Batteries
number of battery filled slots 0
number of battery free slots 0
Replacement battery RBC176
Battery recharge time 8 h
battery voltage 24 V
Battery power in VAH 136 VAh runtime, 168 VAh capacity
battery life 3…5 year(s)
Battery graph comments
Curve fit to measured runtime data. All measurements taken with new,
fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
extended runtime 0
Communications & Management
control panel
LED Status display with on line : on battery
alarm
Alarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge energy rate 273 J
Data line protection RJ45 10/100/1000 Base-T Ethernet protection
Warranty 2 years repair or replace
APC™ BackUPS ™ BX series is a cost effective power - bx1600mi-ms
protection solution for home and home office environments.
The series comprehensive VA range with premium features further enables single UPS capabilities
Ideal Power Protection for the following environments and devices:
Home office - work from home & remote learning devices
Home Entertainment - Living room essentials
Smart Home - loT electronics
Battery backup is key to home continuity
The Electronic devices you reply on for communication, security and entertainment depend on a stable network connection.
Ensure reliable uptime and clean power for your critical devices.
Comprehensive Power Capacity Range
Models ranging from 750VA2200VA; choose a solution aligned with your specific application and runtime needs
Visibility and Manageability Software
In the event of an extended power outage, prevent potential data loss or corruption with PowerChute Personal Edition Software
Form Factor:
Compact for office and business spaces (BX750MIOutlets 3MS: 160 x 120 x 355 mm).
Outlets
3 - 5 battery backup with surge protection outlets
Functional ease-of-use
Front panel LED green lights to easily tell the functional status
1Gb Network Protection
Safeguards your equipment and valuable files from “back door” surges traveling along data lines without sacrificing internet speed
Automatic Voltage Regulation (AVR)
Instantly corrects incoming utility power without utilizing the battery, saving the battery for when it is needed most
