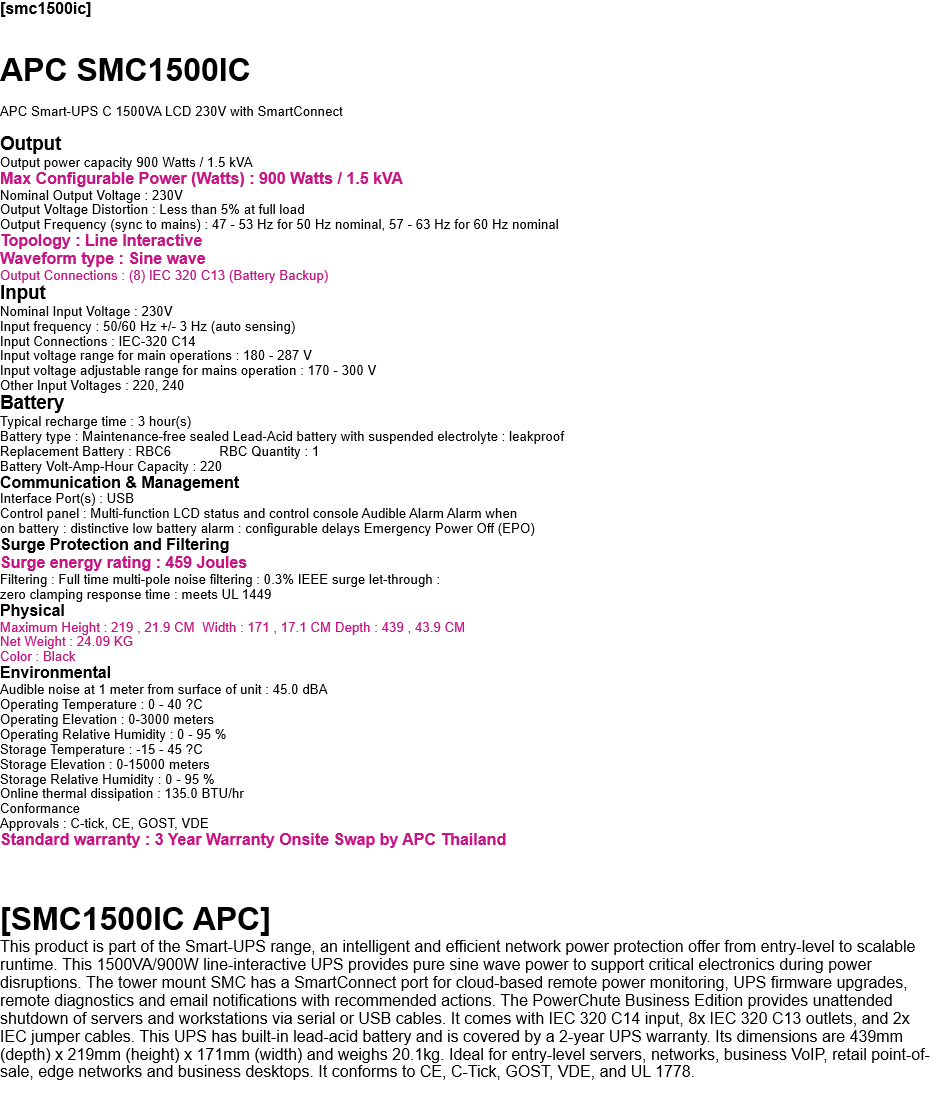

APC SMC1500IC
APC Smart-UPS C 1500VA LCD 230V with SmartConnect
Output
Output power capacity 900 Watts / 1.5 kVA
Max Configurable Power (Watts) : 900 Watts / 1.5 kVA
Nominal Output Voltage : 230V
Output Voltage Distortion : Less than 5% at full load
Output Frequency (sync to mains) : 47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
Topology : Line Interactive
Waveform type : Sine wave
Output Connections : (8) IEC 320 C13 (Battery Backup)
Input
Nominal Input Voltage : 230V
Input frequency : 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections : IEC-320 C14
Input voltage range for main operations : 180 - 287 V
Input voltage adjustable range for mains operation : 170 - 300 V
Other Input Voltages : 220, 240
Battery & Runtime
Typical recharge time : 3 hour(s)
Battery type : Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Replacement Battery : RBC6 RBC Quantity : 1
Battery Volt-Amp-Hour Capacity : 220
Communication & Management
Interface Port(s) : USB
Control panel : Multi-function LCD status and control console Audible Alarm Alarm when on battery
: distinctive low battery alarm : configurable delays Emergency Power Off (EPO)
Surge Protection and Filtering
Surge energy rating : 459 Joules
Filtering : Full time multi-pole noise filtering : 0.3% IEEE surge let-through :
zero clamping response time : meets UL 1449
Physical
Maximum Height : 219 , 21.9 CM Width : 171 , 17.1 CM Depth : 439 , 43.9 CM
Net Weight : 24.09 KG
Color : Black
Environmental
Audible noise at 1 meter from surface of unit : 45.0 dBA
Operating Temperature : 0 - 40 ?C
Operating Elevation : 0-3000 meters
Operating Relative Humidity : 0 - 95 %
Storage Temperature : -15 - 45 ?C
Storage Elevation : 0-15000 meters
Storage Relative Humidity : 0 - 95 %
Online thermal dissipation : 135.0 BTU/hr
Conformance
Approvals : C-tick, CE, GOST, VDE
Standard warranty : 3 Year Warranty Onsite Swap by APC Thailand
