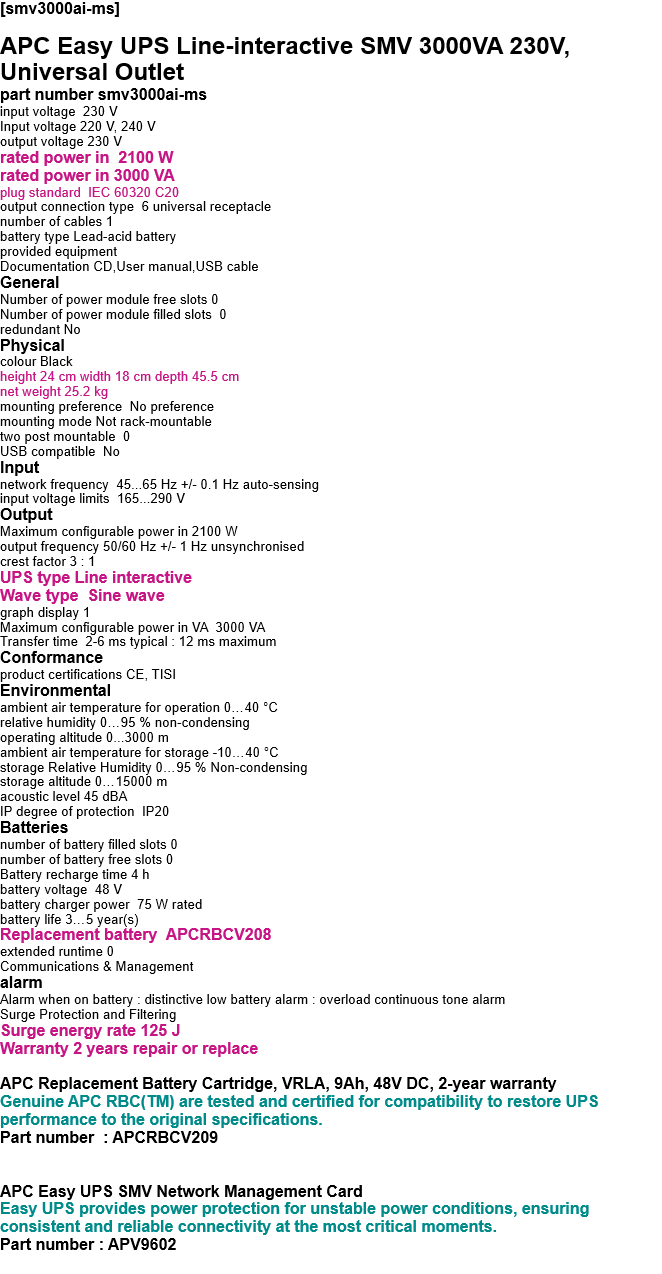

![[smv3000ai-ms] APC Easy UPS Line-interactive SMV 3000VA 230V, Universal Outlet part number smv3000ai-ms input voltage 230 V Input voltage 220 V, 240 V output voltage 230 V rated power in 2100 W rated power in 3000 VA plug standard IEC 60320 C20 output connection type 6 universal receptacle number of cables 1 battery type Lead-acid battery provided equipment Documentation CD,User manual,USB cable General Number of power module free slots 0 Number of power module filled slots 0 redundant No Physical colour Black height 24 cm width 18 cm depth 45.5 cm net weight 25.2 kg mounting preference No preference mounting mode Not rack-mountable two post mountable 0 USB compatible No Input network frequency 45...65 Hz +/- 0.1 Hz auto-sensing input voltage limits 165...290 V Output Maximum configurable power in 2100 W output frequency 50/60 Hz +/- 1 Hz unsynchronised crest factor 3 : 1 UPS type Line interactive Wave type Sine wave graph display 1 Maximum configurable power in VA 3000 VA Transfer time 2-6 ms typical : 12 ms maximum](images/img0689.gif)
P/N SMV1000I-MS
APC Easy UPS Line-interactive
Input/Output voltage 230 V
rated power in 700 W 1000VA
plug standard IEC 60320 C14
output 4 universal receptacle
battery APCRBCV206
provided equipment
Doc CD, User manual,USB, cable
2 years warranty - onsite service
ราคา UPDATE บาท
(กรุณาสอบถามราคา)
APC Easy UPS Line-interactive
Input/Output voltage 230 V
rated power in 700 W 1000VA
plug standard IEC 60320 C14
output 4 universal receptacle
battery APCRBCV206
provided equipment
Doc CD, User manual,USB, cable
2 years warranty - onsite service
ราคา UPDATE บาท
(กรุณาสอบถามราคา)
P/N SMV2000AI-MS
APC Easy UPS Line-interactive
Input/Output voltage 230 V
rated power in 1400 W 2000VA
plug standard IEC 60320 C14
output 6 universal receptacle
battery APCRBCV208
provided equipment
Doc CD, User manual,USB, cable
2 years warranty - onsite service
ราคา UPDATE บาท
(กรุณาสอบถามราคา)
APC Easy UPS Line-interactive
Input/Output voltage 230 V
rated power in 1400 W 2000VA
plug standard IEC 60320 C14
output 6 universal receptacle
battery APCRBCV208
provided equipment
Doc CD, User manual,USB, cable
2 years warranty - onsite service
ราคา UPDATE บาท
(กรุณาสอบถามราคา)
สินค้าที่เกี่ยวข้อง (Related Product)
เครื่องสำรองไฟ APC SMV3000AI-MS เป็นรุ่น smv series เครื่องรุ่นนี้ ระบบไฟเป็นแบบ line interactive กำลังไฟ 3000va 2100 Watts , output ด้านหลังเครื่องมี 6 ช่องเสียบเป็นแบบ universal outlet รับประกัน 2 ปีเต็ม onsite service
Conformance
product certifications CE, TISI
Environmental
ambient air temperature for operation 0…40 °C
relative humidity 0…95 % non-condensing
operating altitude 0...3000 m
ambient air temperature for storage -10…40 °C
storage Relative Humidity 0…95 % Non-condensing
storage altitude 0…15000 m
acoustic level 45 dBA
IP degree of protection IP20
Batteries
number of battery filled slots 0
number of battery free slots 0
Battery recharge time 4 h
battery voltage 48 V
battery charger power 75 W rated
battery life 3…5 year(s)
Replacement battery APCRBCV208
extended runtime 0
Communications & Management
alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate 125 J
Warranty 2 years repair or replace
APC Replacement Battery Cartridge, VRLA, 9Ah, 48V DC, 2-year warranty
Genuine APC RBC(TM) are tested and certified for compatibility to restore UPS performance to the original specifications.
Part number : APCRBCV209
APC Easy UPS SMV Network Management Card
Easy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Part number : APV9602
Genuine APC RBC(TM) are tested and certified for compatibility to restore UPS performance to the original specifications.
Part number : APCRBCV209
APC Easy UPS SMV Network Management CardEasy UPS provides power protection for unstable power conditions, ensuring consistent and reliable connectivity at the most critical moments.
Part number : APV9602
