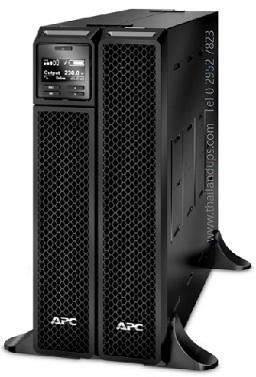

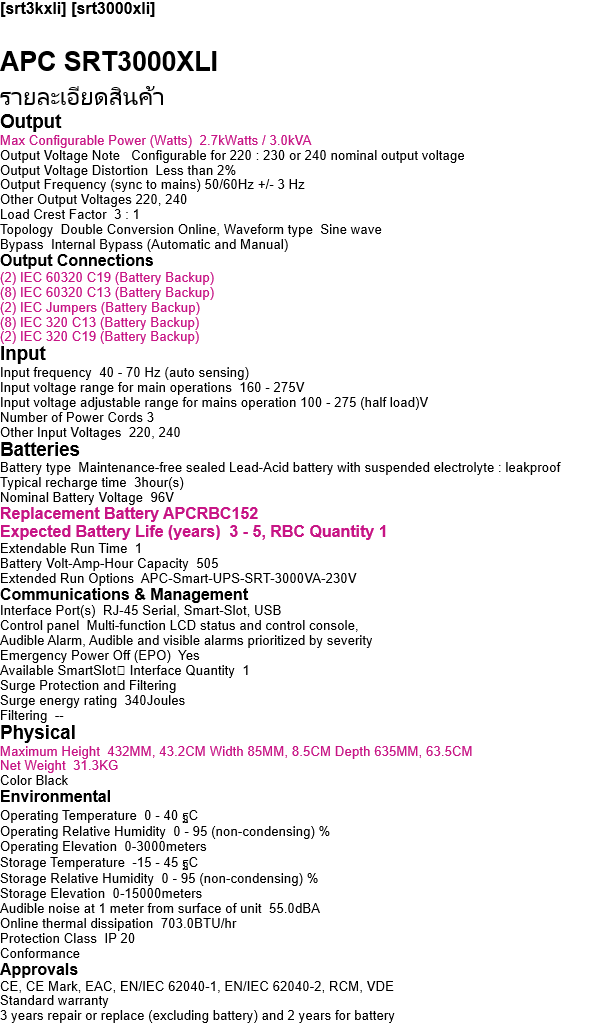

APC SRT3000XLI ( srt3kxli )
Output
Max Configurable Power (Watts) 2.7kWatts / 3.0kVA
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Output Voltage Distortion Less than 2%
Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
Other Output Voltages 220, 240
Load Crest Factor 3 : 1
Topology Double Conversion Online, Waveform type Sine wave
Bypass Internal Bypass (Automatic and Manual)
Output Connections
(2) IEC 60320 C19 (Battery Backup)
(8) IEC 60320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
(8) IEC 320 C13 (Battery Backup)
(2) IEC 320 C19 (Battery Backup)
Input
Input frequency 40 - 70 Hz (auto sensing)
Input voltage range for main operations 160 - 275V
Input voltage adjustable range for mains operation 100 - 275 (half load)V
Number of Power Cords 3
Other Input Voltages 220, 240
Batteries
Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical recharge time 3hour(s)
Nominal Battery Voltage 96V
Replacement Battery APCRBC152
Expected Battery Life (years) 3 - 5, RBC Quantity 1
Extendable Run Time 1
Battery Volt-Amp-Hour Capacity 505
Extended Run Options APC-Smart-UPS-SRT-3000VA-230V
Communications & Management
Interface Port(s) RJ-45 Serial, Smart-Slot, USB
Control panel Multi-function LCD status and control console,
Audible Alarm, Audible and visible alarms prioritized by severity
Emergency Power Off (EPO) Yes
Available SmartSlot Interface Quantity 1
Surge Protection and Filtering
Surge energy rating 340Joules
Filtering --
Physical
Maximum Height 432MM, 43.2CM Width 85MM, 8.5CM Depth 635MM, 63.5CM
Net Weight 31.3KG
Color Black
Environmental
Operating Temperature 0 - 40 ฐC
Operating Relative Humidity 0 - 95 (non-condensing) %
Operating Elevation 0-3000meters
Storage Temperature -15 - 45 ฐC
Storage Relative Humidity 0 - 95 (non-condensing) %
Storage Elevation 0-15000meters
Audible noise at 1 meter from surface of unit 55.0dBA
Online thermal dissipation 703.0BTU/hr
Protection Class IP 20
Conformance
Approvals
CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE
Standard warranty
3 years repair or replace (excluding battery) and 2 years for battery
