PART NUMBER SMX750I
APC Smart-UPS X, Line Interactive, 750VA,
Main Input Voltage 230 V
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
rated power in W 600 W
rated power in VA 750 VA
nb of power socket outlets 8 IEC 320 C13,2 IEC Jumpers
cable length 1.83 m
number of cables 1
battery type Lead-acid battery
provided equipment - CD with software,Documentation CD,
Installation guide,Rack mounting brackets,Removable support feet
Smart UPS signalling RS-232 cable,User manual
Number of power module filled slots 0
Number of power module free slots 0
product web sub-family
Extended run
redundant No
colour Black
height 8.9 cm width 43.2 cm depth 49 cm
net weight 22.05 kg
mounting preference Lower
mounting mode Rack-mounted with kit
two post mountable 1
USB compatible No
input voltage limits 151...302 V adjustable 160...286 V
network frequency 50/60 Hz +/- 3 Hz auto-sensing
harmonic distortion Less than 5 %
Maximum configurable power in VA 750 VA
Maximum configurable power in W 600 W
UPS type Line interactive
Wave type Sine wave
output frequency 50/60 Hz +/- 3 Hz sync to mains
product certifications CE,RCM,VDE,EAC
acoustic level 40 dBA
heat dissipation 69 Btu/h
operating altitude 0...10000 ft
ambient air temperature for operation 0…40 °C
ambient air temperature for storage -15…45 °C
storage altitude 0.00…15240.00 m
relative humidity 0…95 %
storage Relative Humidity 0…95 %

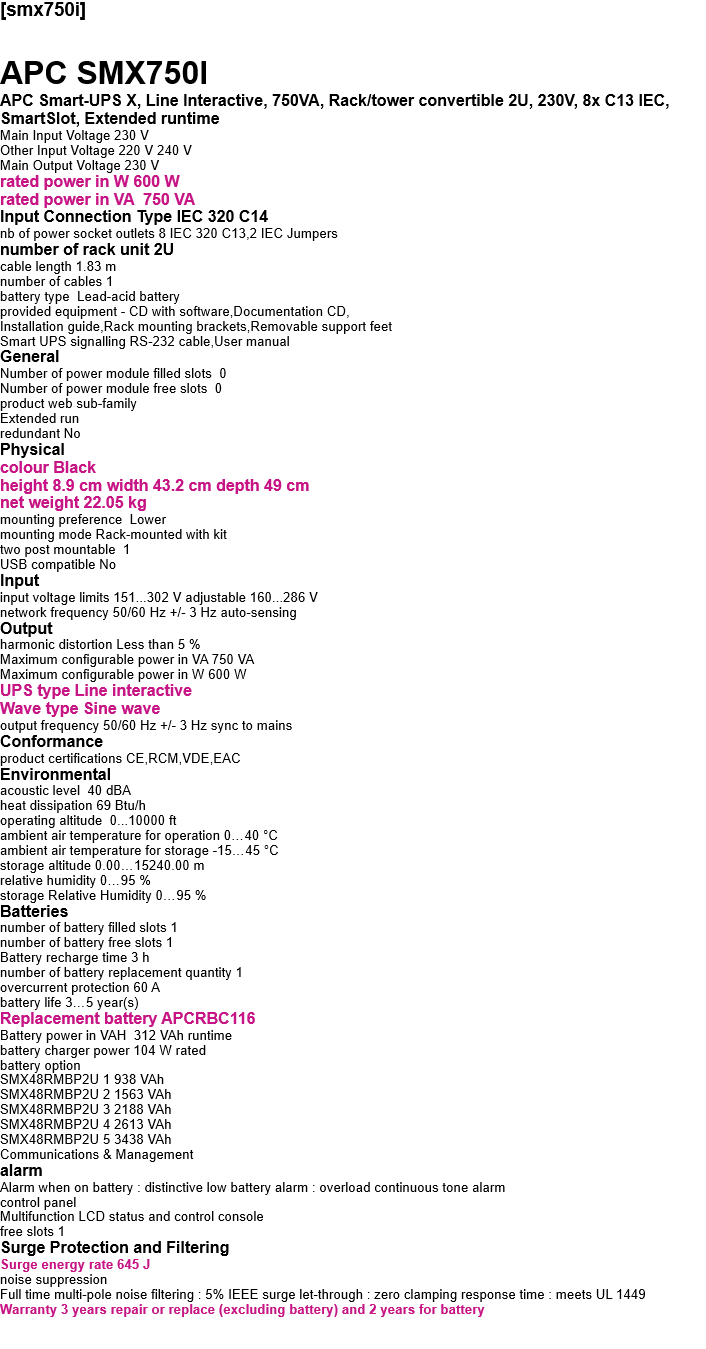

APC Smart-UPS X, Line Interactive, 750VA,
Rack/tower convertible 2U, 230V, 8x C13 IEC,
SmartSlot, Extended runtime
Main Input Voltage 230 V
Other Input Voltage 220 V 240 V
Main Output Voltage 230 V
rated power in W 600 W
rated power in VA 750 VA
Input Connection Type IEC 320 C14
nb of power socket outlets 8 IEC 320 C13,2 IEC Jumpers
number of rack unit 2U
cable length 1.83 m
number of cables 1
battery type Lead-acid battery
provided equipment - CD with software,Documentation CD,
Installation guide,Rack mounting brackets,Removable support feet
Smart UPS signalling RS-232 cable,User manual
General
Number of power module filled slots 0
Number of power module free slots 0
product web sub-family
Extended run
redundant No
Physical
colour Black
height 8.9 cm width 43.2 cm depth 49 cm
net weight 22.05 kg
mounting preference Lower
mounting mode Rack-mounted with kit
two post mountable 1
USB compatible No
Input
input voltage limits 151...302 V adjustable 160...286 V
network frequency 50/60 Hz +/- 3 Hz auto-sensing
Output
harmonic distortion Less than 5 %
Maximum configurable power in VA 750 VA
Maximum configurable power in W 600 W
UPS type Line interactive
Wave type Sine wave
output frequency 50/60 Hz +/- 3 Hz sync to mains
Conformance
product certifications CE,RCM,VDE,EAC
Environmental
acoustic level 40 dBA
heat dissipation 69 Btu/h
operating altitude 0...10000 ft
ambient air temperature for operation 0…40 °C
ambient air temperature for storage -15…45 °C
storage altitude 0.00…15240.00 m
relative humidity 0…95 %
storage Relative Humidity 0…95 %
เครื่องสำรองไฟ apc smx750i เป็นเครื่องสำรองไฟ ที่สามารถเพิ่มระยะเวลาการสำรองไฟ และลูกค้าสามารถตั้งหรือนำเข้าตู้ rack apc smx750i มีขนาด 2 U และมีกำลังไฟ 750va 600 วัตต์ ระบบไฟเป็นแบบ line interactive ส่วน output ด้านหลังเป็น IEC 8 ช่อง การรับประกัน 3 ปี onsite service
Batteries
number of battery filled slots 1
number of battery free slots 1
Battery recharge time 3 h
number of battery replacement quantity 1
overcurrent protection 60 A
battery life 3…5 year(s)
Replacement battery APCRBC116
Battery power in VAH 312 VAh runtime
battery charger power 104 W rated
battery option
SMX48RMBP2U 1 938 VAh
SMX48RMBP2U 2 1563 VAh
SMX48RMBP2U 3 2188 VAh
SMX48RMBP2U 4 2613 VAh
SMX48RMBP2U 5 3438 VAh
Communications & Management
alarm
Alarm when on battery : distinctive low battery alarm :
overload continuous tone alarm
control panel
Multifunction LCD status and control console
free slots 1
Surge Protection and Filtering
Surge energy rate 645 J
noise suppression
Full time multi-pole noise filtering : 5% IEEE surge let-through :
zero clamping response time : meets UL 1449
Warranty 3 years repair or replace (excluding battery)
and 2 years for battery
