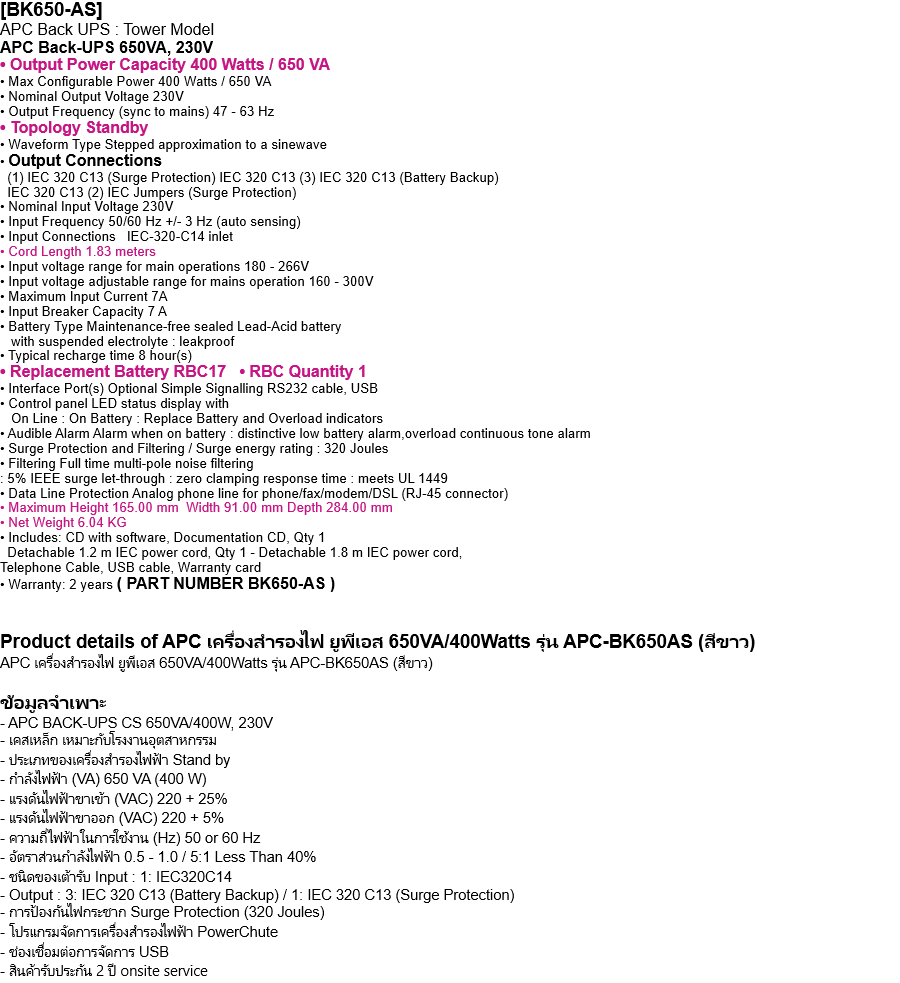

[BK650-AS]


APC Back UPS : Tower Model
APC Back-UPS 650VA, 230V

• Output Power Capacity 400 Watts / 650 VA
• Max Configurable Power 400 Watts / 650 VA
• Nominal Output Voltage 230V
• Output Frequency (sync to mains) 47 - 63 Hz
• Topology Standby
• Waveform Type Stepped approximation to a sinewave
Output Connections

  (1) IEC 320 C13 (Surge Protection) IEC 320 C13 (3) IEC 320 C13 (Battery Backup)
  IEC 320 C13 (2) IEC Jumpers (Surge Protection)
• Nominal Input Voltage 230V
• Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
• Input Connections   IEC-320-C14 inlet
• Cord Length 1.83 meters
• Input voltage range for main operations 180 - 266V
• Input voltage adjustable range for mains operation 160 - 300V
• Maximum Input Current 7A
• Input Breaker Capacity 7 A
• Battery Type Maintenance-free sealed Lead-Acid battery
   with suspended electrolyte : leakproof
• Typical recharge time 8 hour(s)
• Replacement Battery RBC17   • RBC Quantity 1
• Interface Port(s) Optional Simple Signalling RS232 cable, USB
• Control panel LED status display with
   On Line : On Battery : Replace Battery and Overload indicators
• Audible Alarm Alarm when on battery : distinctive low battery alarm,overload continuous tone alarm
• Surge Protection and Filtering / Surge energy rating : 320 Joules
• Filtering Full time multi-pole noise filtering
: 5% IEEE surge let-through : zero clamping response time : meets UL 1449
• Data Line Protection Analog phone line for phone/fax/modem/DSL (RJ-45 connector)
• Maximum Height 165.00 mm  Width 91.00 mm Depth 284.00 mm
• Net Weight 6.04 KG
• Includes: CD with software, Documentation CD, Qty 1
  Detachable 1.2 m IEC power cord, Qty 1 - Detachable 1.8 m IEC power cord,
Telephone Cable, USB cable, Warranty card
• Warranty: 2 years
( PART NUMBER BK650-AS )


Product details of APC เครื่องสำรองไฟ ยูพีเอส 650VA/400Watts รุ่น APC-BK650AS (สีขาว)

APC
เครื่องสำรองไฟ ยูพีเอส 650VA/400Watts รุ่น APC-BK650AS (สีขาว)

ข้อมูลจำเพาะ

- APC BACK-UPS CS 650VA/400W, 230V
-
เคสเหล็ก เหมาะกับโรงงานอุตสาหกรรม
-
ประเภทของเครื่องสำรองไฟฟ้า Stand by
-
กำลังไฟฟ้า (VA) 650 VA (400 W)
-
แรงดันไฟฟ้าขาเข้า (VAC) 220 + 25%
-
แรงดันไฟฟ้าขาออก (VAC) 220 + 5%
-
ความถี่ไฟฟ้าในการใช้งาน (Hz) 50 or 60 Hz
-
อัตราส่วนกำลังไฟฟ้า 0.5 - 1.0 / 5:1 Less Than 40%
-
ชนิดของเต้ารับ Input : 1: IEC320C14
- Output : 3: IEC 320 C13 (Battery Backup) / 1: IEC 320 C13 (Surge Protection)
-
การป้องกันไฟกระชาก Surge Protection (320 Joules)
-
โปรแกรมจัดการเครื่องสำรองไฟฟ้า PowerChute
-
ช่องเชื่อมต่อการจัดการ USB
-
สินค้ารับประกัน 2 ปี onsite service

เครื่องสำรองไฟ ราคาพิเศษ
ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่  088 758 4005    080 964 2745    096 308 9747    088 758 4003    088 758 4005    080 964 2745
World
Thailand

ThailandUPS.com

ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
เครื่องสำรองไฟ apc bk650ei เป็นเครื่องสำรองไฟ ที่มี case เป็นเหล็ก เหมาะกับโรงงานอุตสาหกรรม
รุ่นนี้ มีกำลังไฟ 400 watts พร้อมปลั๊กไฟด้านหลังเครื่องอีก 4 ช่อง เครื่องสำรองไฟรุ่นนี้ มี port usb
เพื่อสามารถเชื่อมต่อกับคอมพิวเตอร์ เพื่อใช้โปรแกรม powerchute  ด้านหน้าของเครื่องสำรองไฟ  bk650-as จะมี led แสดงสถานะ ของเครื่อง เหมือนกับรุ่น apc bk500ei รายละเอียดเพิ่มเติมติดต่อเราได้เลยค่ะ
