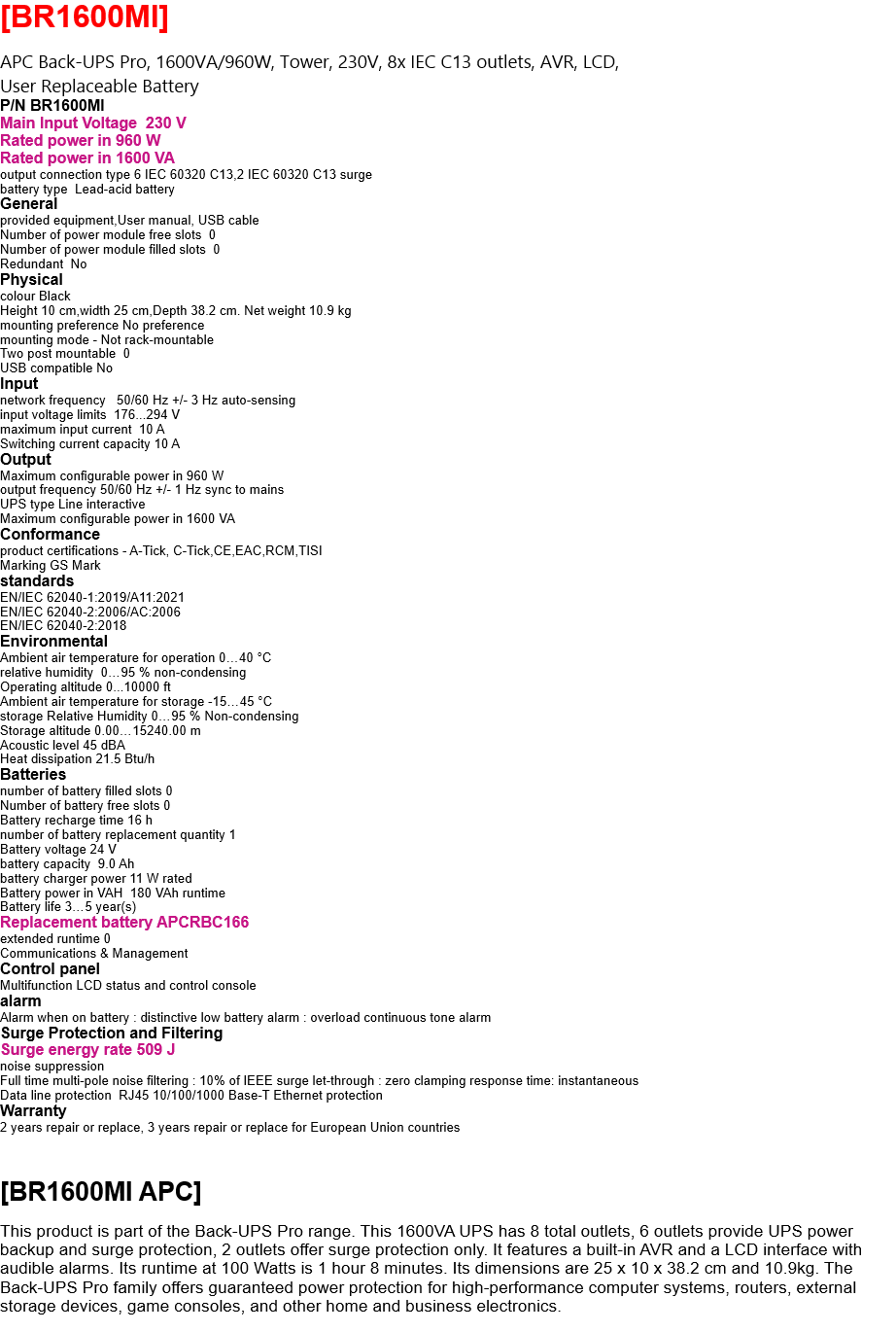

[BR1600MI]
APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD,
User Replaceable Battery
Main Input Voltage 230 V
Rated power in 960 W
Rated power in 1600 VA
output connection type 6 IEC 60320 C13,2 IEC 60320 C13 surge
battery type Lead-acid battery
provided equipment,User manual, USB cable
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
colour Black
Height 10 cm,width 25 cm,Depth 38.2 cm. Net weight 10.9 kg
mounting preference No preference
mounting mode - Not rack-mountable
Two post mountable 0
USB compatible No
network frequency 50/60 Hz +/- 3 Hz auto-sensing
input voltage limits 176...294 V
maximum input current 10 A
Switching current capacity 10 A
Maximum configurable power in 960 W
output frequency 50/60 Hz +/- 1 Hz sync to mains
UPS type Line interactive
Maximum configurable power in 1600 VA
product certifications - A-Tick, C-Tick,CE,EAC,RCM,TISI
Marking GS Mark
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Ambient air temperature for operation 0…40 °C
relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
storage Relative Humidity 0…95 % Non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 45 dBA
Heat dissipation 21.5 Btu/h
number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 16 h
number of battery replacement quantity 1
Battery voltage 24 V
battery capacity 9.0 Ah
battery charger power 11 W rated
Battery power in VAH 180 VAh runtime
Battery life 3…5 year(s)
Replacement battery APCRBC166
extended runtime 0
Communications & Management
Multifunction LCD status and control console
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge energy rate 509 J
noise suppression
Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Data line protection RJ45 10/100/1000 Base-T Ethernet protection
2 years repair or replace, 3 years repair or replace for European Union countries
This product is part of the Back-UPS Pro range. This 1600VA UPS has 8 total outlets, 6 outlets provide UPS power backup and surge protection, 2 outlets offer surge protection only. It features a built-in AVR and a LCD interface with audible alarms. Its runtime at 100 Watts is 1 hour 8 minutes. Its dimensions are 25 x 10 x 38.2 cm and 10.9kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.
APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD,
User Replaceable Battery
P/N BR1600MI
Main Input Voltage 230 V
Rated power in 960 W
Rated power in 1600 VA
output connection type 6 IEC 60320 C13,2 IEC 60320 C13 surge
battery type Lead-acid battery
General
provided equipment,User manual, USB cable
Number of power module free slots 0
Number of power module filled slots 0
Redundant No
Physical
colour Black
Height 10 cm,width 25 cm,Depth 38.2 cm. Net weight 10.9 kg
mounting preference No preference
mounting mode - Not rack-mountable
Two post mountable 0
USB compatible No
Input
network frequency 50/60 Hz +/- 3 Hz auto-sensing
input voltage limits 176...294 V
maximum input current 10 A
Switching current capacity 10 A
Output
Maximum configurable power in 960 W
output frequency 50/60 Hz +/- 1 Hz sync to mains
UPS type Line interactive
Maximum configurable power in 1600 VA
Conformance
product certifications - A-Tick, C-Tick,CE,EAC,RCM,TISI
Marking GS Mark
standards
EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018
Environmental
Ambient air temperature for operation 0…40 °C
relative humidity 0…95 % non-condensing
Operating altitude 0...10000 ft
Ambient air temperature for storage -15…45 °C
storage Relative Humidity 0…95 % Non-condensing
Storage altitude 0.00…15240.00 m
Acoustic level 45 dBA
Heat dissipation 21.5 Btu/h
Batteries
number of battery filled slots 0
Number of battery free slots 0
Battery recharge time 16 h
number of battery replacement quantity 1
Battery voltage 24 V
battery capacity 9.0 Ah
battery charger power 11 W rated
Battery power in VAH 180 VAh runtime
Battery life 3…5 year(s)
Replacement battery APCRBC166
extended runtime 0
Communications & Management
Control panel
Multifunction LCD status and control console
alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rate 509 J
noise suppression
Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Data line protection RJ45 10/100/1000 Base-T Ethernet protection
Warranty
2 years repair or replace, 3 years repair or replace for European Union countries
[BR1600MI APC]
This product is part of the Back-UPS Pro range. This 1600VA UPS has 8 total outlets, 6 outlets provide UPS power backup and surge protection, 2 outlets offer surge protection only. It features a built-in AVR and a LCD interface with audible alarms. Its runtime at 100 Watts is 1 hour 8 minutes. Its dimensions are 25 x 10 x 38.2 cm and 10.9kg. The Back-UPS Pro family offers guaranteed power protection for high-performance computer systems, routers, external storage devices, game consoles, and other home and business electronics.
![[br1600mi] - APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD, User Replaceable Battery](images/apc br1600mi.jpg "APC BR1600MI")
ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005 080 964 2745
Thailand
ThailandUPS.com
ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
apc br1600mi เป็นเครื่องสำรองไฟ ที่มีช่องเสียบหรือปลั๊กด้านหลังของเครื่องค่อนข้างมาก มีถึง 8 ช่องโดยแบ่งเป็น 6 ช่องเสียบสำหรับสำรองไฟ ส่วนอีก 2 ช่องเสียบไม่สำรองไฟแต่มี surge protection มีไว้ใช้กับ เครื่องพิมพ์ laser และอุปกรณ์ที่ไม่ต้องการสำรองไฟ แต่แค่ต้องการกันไฟกระชาก apc br1600mi หน้าจอเป็น LCD แสดงสถานะต่างๆ และมีเสียงเตือนในสถานนะ ต่างๆ เช่นกัน
