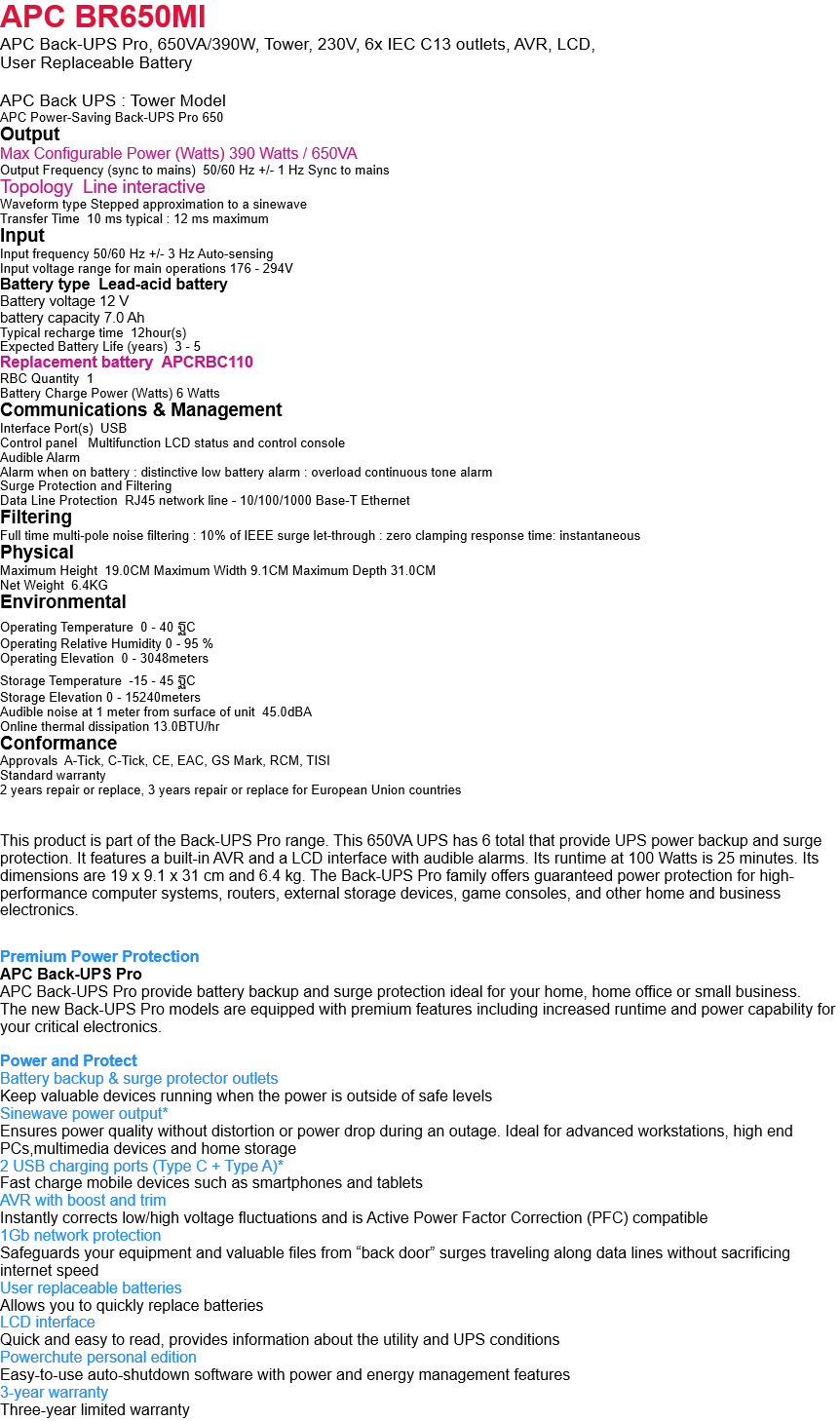

APC BR650MI
APC Back UPS : Tower Model
APC Power-Saving Back-UPS Pro 650
Output
Max Configurable Power (Watts) 390 Watts / 650VA
Output Frequency (sync to mains) 50/60 Hz +/- 1 Hz Sync to mains
Topology Line interactive
Waveform type Stepped approximation to a sinewave
Transfer Time 10 ms typical : 12 ms maximum
Input
Input frequency 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations 176 - 294V
Battery type Lead-acid battery
Typical recharge time 12hour(s)
Expected Battery Life (years) 3 - 5
RBC Quantity 1
Battery Charge Power (Watts) 6 Watts
Communications & Management
Interface Port(s) USB
Control panel Multifunction LCD status and control console
Audible Alarm
Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Data Line Protection RJ45 network line - 10/100/1000 Base-T Ethernet
Filtering
Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous
Physical
Maximum Height 19.0CM Maximum Width 9.1CM Maximum Depth 31.0CM
Net Weight 6.4KG
Environmental
Operating Temperature 0 - 40 ฐC
Operating Relative Humidity 0 - 95 %
Operating Elevation 0 - 3048meters
Storage Temperature -15 - 45 ฐC
Storage Elevation 0 - 15240meters
Audible noise at 1 meter from surface of unit 45.0dBA
Online thermal dissipation 13.0BTU/hr
Conformance
Approvals A-Tick, C-Tick, CE, EAC, GS Mark, RCM, TISI
Standard warranty
2 years repair or replace, 3 years repair or replace for European Union countries
