DELTA N-SERIES - TOWER
N-1000VA-3Y or N-1K Model Power Rating 1kVA/0.9KW ( true online double-conversion )
INPUT
Nominal Voltage 220/230/240 Vac
Voltage range 175 ~ 280 Vac (full load); 80~175 Vac (50%-100% load)
Frequency 50/60 Hz ฑ 10 Hz
Power Factor > 0.99 (full load)
Current Harmonic Distortion <3%
OUTPUT
Power Factor 0.9
Voltage 220/230/240 Vac
Frequency 50/60 Hz ฑ 0.05 Hz
Current Harmonic Distortion < 3% (linear load)
Overload Capability < 105%: continuous; < 105% ~ 125%:1 minutes;
125% ~ 150%:30 seconds
Crest Factor 3:1
Receptacle IEC C13 x 4
EFFICIENCY AC-AC 91%
BATTERY
Nominal Voltage 24 Vdc
Battery type : VRLA12v9Ah, 2 pcs
Typical Backup Time 4.5 min.(full load); 13 min.(half load)
Recharge Time 3hrs to 90%
Charge Current 1A
AUDIBLE NOISE <43 dBA
DISPLAY LCD panel
CONFORMANCE SAFTEY & EMC
CE/ RCM/ EN62040-1/ EN62040-2 Category C2
PHYSICA
LDimensions (Wx Dx H) 145 x 320 x225 mm
Weight 9 kgs
ENVIRONMENT
Operating Temperature 0 ~ 40ฐ C
Relative Humidity 5% ~ 95% (no condensing)
3 years warranty ( Onsite service )
The power behind competitiveness
Delta UPS - Amplon Family
N Series, Single Phase 1/2/3 kVA
High-performance power protection with greater energy savings
Availability
• True online double-conversion topology and zero transfer time to battery ensure high reliability
• Advanced DSP (Digital Signal Processor) controller for fast computation capability and a simplified
control circuit for enhanced stability
• Wide input voltage range allows the UPS to work in harsh electrical environments
• Generator compatibility ensures continuous and reliable power Green with Low TCO
• High input power factor (> 0.99) and low input harmonic distortion (iTHD < 3%) save upstream investment
• Output power factor up to 0.9 presents a stronger load capacity
• AC-AC efficiency up to 93% and high efficiency of 91% at 50% load results in marked energy cost savings
• Compact design saves more space for critical equipment Intelligent Management
• Excellent local communications through LCD display
• Intelligent battery management maximizes battery performance and sustains battery life
• Mini slot and USB port enhance monitoring and manageability
Delta UPS - Amplon Family
N Series, Single Phase 1/2/3 kVA
High-performance power protection with greater energy savings
Availability
• True online double-conversion topology and zero transfer time to battery ensure high reliability
• Advanced DSP (Digital Signal Processor) controller for fast computation capability and a simplified
control circuit for enhanced stability
• Wide input voltage range allows the UPS to work in harsh electrical environments
• Generator compatibility ensures continuous and reliable power Green with Low TCO
• High input power factor (> 0.99) and low input harmonic distortion (iTHD < 3%) save upstream investment
• Output power factor up to 0.9 presents a stronger load capacity
• AC-AC efficiency up to 93% and high efficiency of 91% at 50% load results in marked energy cost savings
• Compact design saves more space for critical equipment Intelligent Management
• Excellent local communications through LCD display
• Intelligent battery management maximizes battery performance and sustains battery life
• Mini slot and USB port enhance monitoring and manageability
ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005 080 964 2745
ThailandUPS.com
ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
เครื่องสำรองไฟเดลต้า Delta UPS รุ่น N-1000VA-3Y ระะบบ true online double-conversion topology และ zero transfer time to battery การแสดงสถานะผ่านจอ LCD กำลังไฟ 1000va 900watts ปลั๊กไฟด้านหลังเป็นแบบ IEC แต่ลูกค้าไม่ต้องกังวลนะค่ะ เพราะทางเรามีจำหน่าย หัวปลั๊กแปลง เพื่อใช้กับเครื่องสำรองไฟ รุ่นนี้ ด้วยค่ะ การรับประกัน 3 ปี เต็ม onsite service ทั่วประเทศ สอบถามรายละเอียด เพิ่มเติม ได้ที่นี้ เลย นะคะ

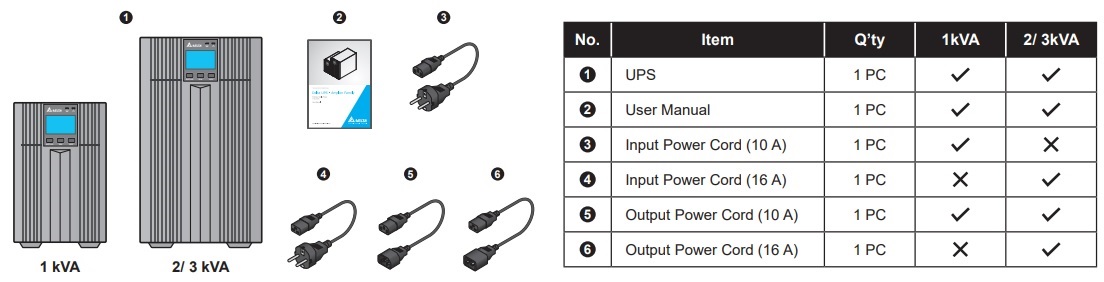

Package list for Delta N Series -
Delta N-1000VA, Delta N-2000VA and Delta N-3000VA
