DELTA N-SERIES - TOWER
N-3000VA-3Y or N-3K Model INPUT
Nominal Voltage 220/230/240 Vac
Voltage range 175 ~ 280 Vac (full load); 80~175 Vac (50%-100% load)
Frequency 50/60 Hz ฑ 10 Hz
Power Factor > 0.99 (full load)
Current Harmonic Distortion <3%
OUTPUT
Power Factor 0.9
Voltage 220/230/240 Vac
Frequency 50/60 Hz ฑ 0.05 Hz
Current Harmonic Distortion < 3% (linear load)
Overload Capability < 105%: continuous; < 105% ~ 125%:
1 minutes;125% ~ 150%:30 seconds
Crest Factor 3:1
Receptacle IEC C13 x 6, C19 x 1
EFFICIENCY Up to 93%
BATTERY
Nominal Voltage 72 Vdc
Battery type : VRLA12v9Ah, 6 pcs
Typical Backup Time 4.5 min.(full load); 13 min.(half load)
Recharge Time 3hrs to 90%
Charge Current 1A
AUDIBLE NOISE <48 dBA
DISPLAY LCD panel
CONFORMANCE SAFTEY & EMC CE/ RCM/
EN62040-1/ EN62040-2 Category C2
PHYSICAL
Dimensions (Wx Dx H) 190 x 390 x 325 mm
Weight 24.4 kgs
ENVIRONMENT
Operating Temperature 0 ~ 40ฐ C
Relative Humidity 5% ~ 95% (no condensing)
3 years warranty ( Onsite service )
The power behind competitiveness
Delta UPS - Amplon Family
N Series, Single Phase 1/2/3 kVA
High-performance power protection with greater energy savings
Availability
• True online double-conversion topology and zero transfer time to battery ensure high reliability
• Advanced DSP (Digital Signal Processor) controller for fast computation capability and a simplified
control circuit for enhanced stability
• Wide input voltage range allows the UPS to work in harsh electrical environments
• Generator compatibility ensures continuous and reliable power Green with Low TCO
• High input power factor (> 0.99) and low input harmonic distortion (iTHD < 3%) save upstream investment
• Output power factor up to 0.9 presents a stronger load capacity
• AC-AC efficiency up to 93% and high efficiency of 91% at 50% load results in marked energy cost savings
• Compact design saves more space for critical equipment Intelligent Management
• Excellent local communications through LCD display
• Intelligent battery management maximizes battery performance and sustains battery life
• Mini slot and USB port enhance monitoring and manageability
Delta UPS - Amplon Family
N Series, Single Phase 1/2/3 kVA
High-performance power protection with greater energy savings
Availability
• True online double-conversion topology and zero transfer time to battery ensure high reliability
• Advanced DSP (Digital Signal Processor) controller for fast computation capability and a simplified
control circuit for enhanced stability
• Wide input voltage range allows the UPS to work in harsh electrical environments
• Generator compatibility ensures continuous and reliable power Green with Low TCO
• High input power factor (> 0.99) and low input harmonic distortion (iTHD < 3%) save upstream investment
• Output power factor up to 0.9 presents a stronger load capacity
• AC-AC efficiency up to 93% and high efficiency of 91% at 50% load results in marked energy cost savings
• Compact design saves more space for critical equipment Intelligent Management
• Excellent local communications through LCD display
• Intelligent battery management maximizes battery performance and sustains battery life
• Mini slot and USB port enhance monitoring and manageability
ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005 080 964 2745
ThailandUPS.com
ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
เครื่องสำรองไฟเดลต้า 3000va -

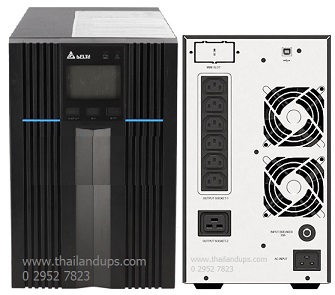

delta N-3000VA-3Y
มีกำลังไฟ 3000va 2700watts เป็นระบบ true online ups มีหน้าจอแสดงสถานะต่างๆ และมี output ด้านหลังเครื่องจำนวน 6 ช่อง delta รุ่นนี้ เหมาะกับ server ,อุปกรณ์ทางการแพทย์ โรงงานอุตสาหกรรม ที่ใช้ไฟไม่เกิน 2700 วัตต์ delta รุ่นนี้มาพร้อมกับการรับประกัน 3 ปีเต็ม ประกัน onsite จากศูนย์ เลยนะค่ะ รุ่นนี้ เป็นแบบ tower ( ตั้งพื้น) สอบถามหรือปรึกษาเพิ่มเติมได้ที่นี้เลยนะค่ะ
Package list for Delta N Series -
Delta N-1000VA, Delta N-2000VA and Delta N-3000VA
