Leonics MODEL UKT-2K
CAPACITY 2 kVA / 1800 Watts

INPUT

Voltage 220 Vac single phase nominal voltage
Voltage range 110 - 290 Vac (depend on load)
Frequency 50 Hz ± 10%, auto sensing
Power factor more than 0.99 at full load
OUTPUT

Voltage range 220 Vac ± 1%
Phase single phase
Frequency 50 Hz ± 0.1%
Wave form pure sine wave
Harmonic distortion < 3% of THD at linear load,
< 5% of THD at non-linear load
Overload capability

> 110% for 30 sec. turn to bypass mode
> 150% for 300 ms. turn to bypass mode
Crest factor ratio 3 : 1
Short circuit protection

turn off inverter, no transfer to bypass, audible alarm (AC mode)
Turn off inverter, audible alarm (Battery mode)
Efficiency 88%
Protection overload, over voltage, under voltage,
short circuit proof and battery low voltage shutdown
TRANSFER TIME

Transfer time between AC mode and Battery mode  Zero time (True on-line UPS)
PROTECTION

EMI/RFI attenuation  IEC 62040-2
Surge protection IEC 61000-4-5
BATTERY

Type sealed lead acid (maintenance free) rechargeable
Backup time 15 - 30 minutes (depending on computer load)
Extended backup time option
Continuous recharging time 90% capacity after 6 - 10 hours charging
INDICATOR

LED Inverter, Battery, Bypass, Warning

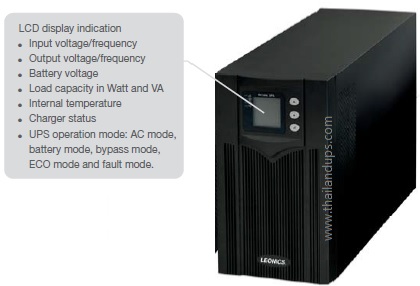

LCD display Input (voltage / frequency), Battery (voltage / capacity), Output (votlage / frequency)
Load (Watt / VA), Inverter temperature, Charger status, Fan status, Operation mode
AUDIBLE ALARM Buzzer Mains failure, low battery, overload, UPS fault
CONNECTION

Input NEMA 5-15P   , Output 4 outlets
COMMUNICATION USB port yes
INTERFACE SNMP/HTTP capability option
SOFTWARE UPS monitoring and management software yes
ACOUSTIC NOISE < 50 dBA at 1 metre
ENVIRONMENT

Temperature 0 - 40oC
Relative humidity 0 - 95% (non-condensing)
CONFORMANCE Design regulation EMC category C2
DIMENSIONS W x H x D (mm)   199 x 337 x 466
WEIGHT Approximate in kg. 24.6
