Leonics green-800, Leonics green-1200 and Leonics green-2000.

Leonics GREEN UPS by ThailandUPS.com

ffice hours : 8:30 - 17:30 ( Monday - Friday )

Tel 0 2952 7823

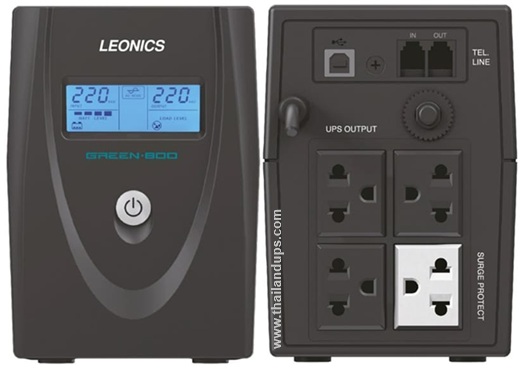

Leonics GREEN-800

Capacity

800 VA / 480 W
System Line Interactive UPS พร้อม Stabilizer
Microprocessor Control
Automatic Voltage Regulation (AVR)

Load Application

Personal Computer 1 ชุด + Printer

Input

Voltage: 220 Vac ±25%
Frequency: 50 Hz ±10% / 60 Hz ±10%
(Auto Sensing)

Output

Voltage (AC Mode): 220 Vac ±10%
Voltage (Battery Mode): 220 Vac ±5%
Transfer Time: 2–6 ms (Typical)

Battery

Type: Sealed Lead Acid (Maintenance Free)
Battery: 1 × 12V 7.2Ah
Backup Time: 15–40 นาที (ขึ้นอยู่กับโหลด)
Recharge Time: 6–8 ชั่วโมง (90% หลัง Discharge)

Protection

Over Voltage / Under Voltage
Overload (AC/DC Mode)
Output Short Circuit
Surge Protection: 125 Joules / 2 ms
Peak Power: 1,000,000 W within 100 µs

Outlet

Backup Outlet: ตามรุ่น
Surge Protection Outlet (ไม่ Backup): มี

Feature

AC/DC Start
Auto Restart
Off Mode Charging
Indicator (LED / LCD)
AC Mode, Battery Mode
Load Level, Battery Level
Input / Output Voltage
Low Battery, Overload, Fault

Audible Alarm

Battery Mode: Beep ทุก 10 วินาที
Low Battery: Beep ทุก 1 วินาที
Overload: Beep ทุก 0.5 วินาที
Fault: Beep ต่อเนื่อง

Environment

Operating Temperature: 0 – 40°C
Relative Humidity: 0 – 90% (Non-condensing)
Acoustic Noise: < 45 dBA

Dimension & Weight

Dimension (W×H×D): 101 × 142 × 298 mm
Weight: 4.5 kg

Conformance

IEC/EN 62040-1,IEC/EN 60950-1,
IEC/EN 62040-2,IEC/EN 62040-3

ราคา UPDATE บาท (#0.00บาท vat)

Leonics GREEN-1200

Capacity

1200 VA / 720 W
System Line Interactive UPS พร้อม Stabilizer
Microprocessor Control AVR

Load Application

Personal Computer 3 ชุด + Printer

Input

Voltage: 220 Vac ±25%
Frequency: 50 Hz ±10% / 60 Hz ±10%
(Auto Sensing)

Output

Voltage (AC Mode): 220 Vac ±10%
Voltage (Battery Mode): 220 Vac ±5%
Transfer Time: 2–6 ms

Battery

Type: Sealed Lead Acid (Maintenance Free)
Battery: 2 × 12V 7.2Ah
Backup Time: 15–40 นาที
Recharge Time: 6–8 ชั่วโมง

Protection

Over / Under Voltage
Overload (AC/DC)
Output Short Circuit
Surge Protection: 125 Joules / 2 ms
Peak Power: 1,000,000 W / 100 µs

Outlet

Backup Outlet: ตามรุ่น
Surge Protection Outlet (ไม่ Backup): มี

Feature

AC/DC Start
Auto Restart
Off Mode Charging
Indicator
AC Mode, Battery Mode
Load Level, Battery Level
Input / Output Voltage
Low Battery, Overload, Fault

Audible Alarm

เหมือน GREEN-800

Environment

Temperature: 0 – 40°C
Humidity: 0 – 90%
Noise: < 45 dBA

Dimension & Weight

Dimension: 149 × 162 × 353 mm
Weight: 8.8 kg

Conformance

IEC/EN 62040-1,IEC/EN 60950-1
IEC/EN 62040-2,IEC/EN 62040-3

ราคา UPDATE บาท (#0.00บาท vat)

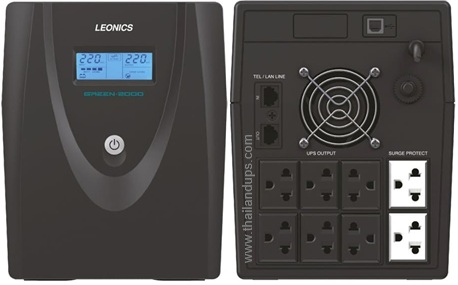

Leonics GREEN-2000

Capacity

2000 VA / 1200 W

System

Line Interactive UPS พร้อม Stabilizer
Microprocessor Control AVR
Load ApplicationPersonal Computer 4 ชุด + Printer

Input

Voltage: 220 Vac ±25%
Frequency: 50 Hz ±10% / 60 Hz ±10%
(Auto Sensing)

Output

Voltage (AC Mode): 220 Vac ±10%
Voltage (Battery Mode): 220 Vac ±5%
Transfer Time: 2–6 ms

Battery

Type: Sealed Lead Acid (Maintenance Free)
Battery: 2 × 12V 9Ah
Backup Time: 15–40 นาที
Recharge Time: 6–8 ชั่วโมง

Protection

Over / Under Voltage
Overload (AC/DC)
Output Short Circuit
Surge Protection: 125 Joules / 2 ms
Peak Power: 1,000,000 W / 100 µs

Outlet

Backup Outlet: ตามรุ่น
Surge Protection Outlet (ไม่ Backup): มี

Feature

AC/DC Start
Auto Restart
Off Mode Charging
USB Communication Port
UPS Monitoring & Management Software
Surge Protection เพิ่มเติม
Telephone Line: มี
LAN Line: มี
Laser Printer: มี

Indicator

AC Mode, Battery Mode
Load Level, Battery Level
Input / Output Voltage
Low Battery, Overload, Fault
Audible Alarm
เหมือนรุ่นอื่น

Environment

Temperature: 0 – 40°C
Humidity: 0 – 90%
Noise: < 55 dBA

Dimension & Weight

Dimension: 158 × 198 × 380 mm
Weight: 11 kg

Conformance

IEC/EN 62040-1,IEC/EN 60950-1
IEC/EN 62040-2,IEC/EN 62040-3

ราคา UPDATE บาท (#0.00บาท vat)

LEONICS. GREEN SERIES ( 2 years warranty - onsite service )
MICROPROCESSOR CONTROL AND LINE INTERACTIVE UPS WITH STABILIZER

POWER PROTECTION
FOR YOUR HOME AND OFFICE COMPUTER

Leonics Green UPS - 800va 1200va and 2000va

(Plastic Enclosure)
Protects against power surges and voltage drops with AVR technology.,Provides instant backup power during outages for safe shutdown,Suitable for computers, office equipment, and CCTV systems,Easy to use with multiple capacity options to match different needs,Good value for money with reliable after-sales service in Thailand.

(Plastic Enclosure)
