Leonics MODEL USE-1500
Capacity (Pf =0.8) 1500VA 1200Watts
Input
Voltage 220Vac (single phase) +/-25%
Frequency 50/60 Hz +/-10% (auto sensing)
Output
Voltage on battery mode 220Vac (single phase) +/-5%
Voltage range on AVR mode 188-245 Vac
Frequency 50/60 Hz +/- 0.3 Hz (settable)
Wave form Pure sine wave
Total harmonic ditortion <= 5% at linear load
Overload capability 110% for 120 sec, 125% for 60 sec, 150% for 10 sec transfer to bypass mode (AC mode)
110% for 60 sec, 120% for 10sec, 150% for 5 sec then shutdown automatically (inverter mode)
transfer time <= 8 msec
Protection overload, short circuit(inverter), battery low voltage, battery over charge, battery over discharge, over temperature
ECO model Settable (<3% load) to enter after 80 sec
No load shutdown Settable (<3% load ) shutdown after 80 sec
Battery
Type Sealed lead acid( maintenance -free) rechargeable
DC Voltage 24 V
Number x capacity 12V9Ah x 2
Backup time depending on connected loads
Continuous recharging teim 8 hours recover to 90% capacity
Charging current 1a
End of discharge voltage single battery 10.2Vdc(default),9.6 - 11.5 Vdc adjustable
Indicator
LED AC mode, inverter mode, bypass mode, setting mode, fault
LCD display input (voltage/frequency), Output(voltage/frequency),
Load (Watt/ Va/Level in %), battery (voltage/capacity in %/levelin %) ,
temperature, operation status, cooling fan status, battery fail status, fault
Audible alarm
Battery mode Audible beep every 5 sec, be silent after 60 sec
Low batteyr voltage audible beep every 0.16 sec ( quick beep)
Overload Audible beep 2 sec in 0.5 sec interval (long beep)

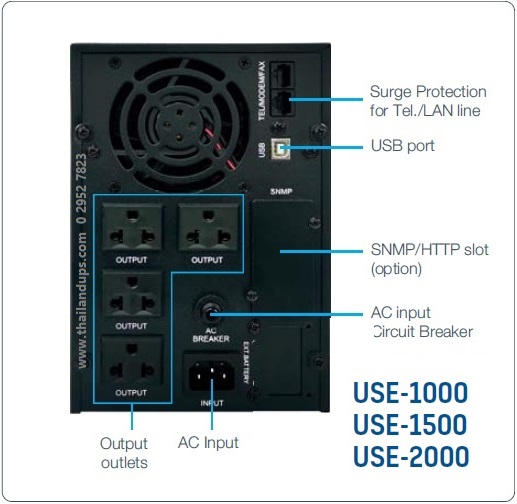

Connection
input power cord TIS 166-2549
Number of output outlets 4
RJ45 port surge protection for telephone and LAN line
Communications interface
USB port an USB port using wiht UPS monitoring and management software
SNMP/HTTP capability Optional
Environmental
Ambient operation 0 to +40 degree, 10-90% Relative humidity ( non-condensing)
audible noise <= 50 dBA at 1 metre
Physical
Dimension ( W x H x D) in cm 14 x 21.5 x 34.5 cm
Net weight ( approximate in kg ) 14.5 kg ( no battery )
Shipping weight ( approximate in kg ) 16 kg ( no battery )
รับประกัน 2 ปี ( Onsite service กรุงเทพ และปริมณฑล)



ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005 080 964 2745
ThailandUPS.com
ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
Pure Sine Wave UPS
LEONICS USE-600 CON
Capacity 600VA/480Watts
Input/Output 220 VAC
Battery Sealed lead acid
External battery
Number of output outlets 4
ราคา update บาท (0.00 บาท vat )
LEONICS USE-1000
Capacity 1000VA/800Watts
Input/Output 220 VAC
Battery Sealed lead acid
Battery 12v7ah x 2
Number of output outlets 4
ราคา update บาท (0.00 บาท vat )
LEONICS USE-2000
Capacity 2000VA/1600Watts
Input/Output 220 VAC
Battery Sealed lead acid
Battery 12v9ah x 3
Number of output outlets 4
ราคา update บาท (0.00 บาท vat )
