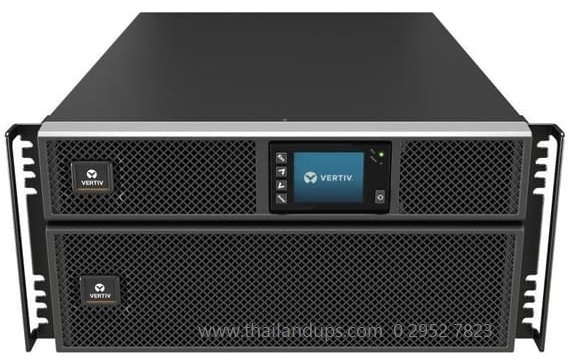

Liebert GXT5-10000IRT2UXL UPS Vertiv 10kVA ราคาพิเศษ

Liebert GXT5 10kVA

คุณสมบัติและจุดเด่นสำคัญ

จ่ายกำลังไฟเต็มประสิทธิภาพ Power Factor 1.0 (10,000W)
รองรับการติดตั้งแบบประหยัดพื้นที่ ทั้ง Rack Mount และ Tower
หน้าจอแสดงผลแบบ LCD สี พร้อมระบบบริหารจัดการแบตเตอรี่อัจฉริยะ

Liebert UPS

GXT5-10KIRT5UXLN

Model Liebert GXT5: On-Line 10000VA/10000W 230V, LCD, PF1.0, 5U,
Extended Run Rack/Tower, Rail Kit Bundled, Web Card (RDU101) bundled,
Integrated Maintenance Bypass

Output Power Capacity 10000Watt / 10000VA
Nominal Output Voltage 230 VAC
Topology True Online
Input voltage range (VAC) 230 VAC
Frequency Range 50Hz or 60Hz
Waveform Sine wave
Battery Type Valve-regulated, non-spillable, lead acid
Qty x V x Rating 2 x 8 x 12V x 9.0 AH

Option Battery Extension Pack

Extended Battery Cabinet for
GXT5-5000VA, 6000VA, 8000VA and 10000VA, 3U, Rail Kit Bundled( part number 02312376 )
6 Additional battery cabinets can be connected ( สามารถต่อ external battery มากสุดที่ 6 ชุด )
Nominal Factory Default is 50
Height 217 mm Width 430 mm Depth 630 mm
Weight 74.5 kg
Part number 01201982
Warranty 2 Years Onsite Replacement Warranty, not include rural area and Pattani, Ya-La, Narathiwas

*** Normally, you can connect up to 10 external battery packs, but it is recommended to use only 6 because the charger will operate more slowly, which may reduce efficiency.

GXT5-10KIRT5UXLN

The Liebert® GXT5™ UPS is a single phase, online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. The new Liebert® GXT5™ from Vertiv™ is an advanced version of the widely-regarded GXT UPS Series. GXT5 is ideally suited to protect critical infrastructure in both centralized and edge network applications.

Best Suited For:

Banking, Financial and Insurance Data Center/Colocation/Hosting Education Government Healthcare Manufacturing Retail and Wholesale Telecom Transportation
Warranty: 2 Years Warranty

Features

Available in 750VA/1/1.5/2/3/5/6/8/10/16/20kVA
Top-level on-line double conversion UPS for mission-critical application
Unity output power factor
LCD multi-language color display (gravity sensing)
On-line (VFI) mode efficiency up to 95.9% at full load
Active ECO mode efficiency up to 99%
Energy Star 2.0 certified
Controllable and programmable output sockets
Integrated solution with batteries and electronics
External battery cabinets auto-detection
Operates at full power up to 40°C (up to 50°C with derating)
Intelligent Communication ready
Safety Agency Approved Category B IEC 61000-4-5 Surges/Lightning protection capability

GXT5-10KIRT5UXLN
