Vertiv™ Liebert®

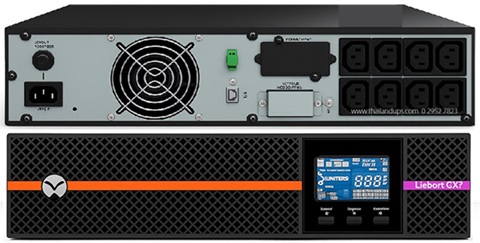

GXE3-2000IRT2UXL
Vertiv™ Liebert® GXE UPS เป็นเครื่องสำรองไฟแบบออนไลน์ดับเบิลคอนเวอร์ชัน (Online Double Conversion) เฟสเดียว ที่มอบการปกป้องพลังงานไฟฟ้าอย่างมีประสิทธิภาพในระบบที่คุ้มค่าและยืดหยุ่นทั้งในการติดตั้งและการใช้งาน โดยมีค่า Power Factor สูงถึง 0.9 ทำให้สามารถจ่ายพลังงานได้อย่างต่อเนื่องและเชื่อถือได้แก่ อุปกรณ์ที่เชื่อมต่อหลายเครื่อง พร้อมทั้งป้องกันปัญหาต่าง ๆ ที่เกิดจากความไม่เสถียรของไฟฟ้ากระแสสลับ (AC) ด้วยเทคโนโลยีออนไลน์ดับเบิลคอนเวอร์ชัน
Liebert GXE UPS มาพร้อมกับความยืดหยุ่นในการใช้งาน ทั้งในรูปแบบติดตั้งกับตู้แร็ค (Rack Mount) หรือแบบตั้งพื้น (Tower) จึงเหมาะสำหรับการปกป้องพลังงานให้กับอุปกรณ์ IT ที่สำคัญในทุกการใช้งาน


Technical Specifications Vertiv Liebert® GXE
Liebert Model-GXE3-2000IRT2UXL
Power Rating (VA/W) 2000VA / 1800W
Form Factor Rack / Tower (2U)
Dimensions, mm
Unit (W x D x H) 438 x 430 x 86
Weight, 22.7Kgs
Input AC Parameters
Voltage Range Without Battery Operation
(230V default, derating applies)* 110 - 290
Voltage Range Without Battery Operation
(230V default, 100% load) 180 - 290
Frequency Range (Hz, autosensing) 40 - 70
Input Power Connector IEC60320 C20
Surge Protection (J) 600
Output AC Parameters
Output Voltage 220/230 (default) /240
Waveform Pure Sine Wave
Output Receptacles 8 x IEC60320 C13
Efficiency (online mode, max.) 89%
Efficiency (ECO mode, max.) 96%
Battery
Type Valve-regulated, non-spillable, lead-acid
Recharge Time (internal batteries, typical) <4 hr @ 90%
Backup Time (100% load, minutes) 3.2
Backup Time (50% load, minutes) 9
Compatible External Battery Cabinet (RT models only) GXE3-EBC48VRT2U
Environmental
Operating Temperature (degree Celsius) 0 to 40 degree Celsius
Storage Temperature (degree Celsius, without battery inside) -20 degree Celsius to +50 degree Celsius
Relative Humidity (operation, non-condensing) 5% to 95%
Operating Altitude (m), without derating (**) 2000
Audible Noise (line mode) <53dBA
Agency
Compliance CE, CB Report, UKCA, Morocco, RCM
Safety IEC/EN 62040-1
Surge Immunity EN 61000-4-5
Transportation ISTA 2A
Environmental RoHS, REACH, WEEE
Communications and Management
Slot for optional cards Yes
Communication port USB
Emergency Power Off (EPO) Yes
Warranty
3 years onsite service ( part number : 01203734 )


GXE3-3000IRT2UXL Liebert
Capacity 3000VA 2700W.( rack 2U/tower)
PF 0.9, True Online,Pure Sine Wave
Output Voltage 220/230 (default) /240V
Output Connections 8x IEC60320 C13;
1x IEC60230 C19
input connection IEC60320 C20
Dims 438 x 630 x 86 mm, 31.5 kgs
part number :
01203737
Comaptible External Battery Cabinet
GXE3-EBC72VRT2U
3 Yrs On Site Replacement Warranty
ราคา update บาท ( #0.00บาท vat )
Best Suited For:
Banking Financial and Insurance Education Government Healthcare
Manufacturing Retail and Wholesale Telecom Transportation
GXE3-1000IRT2UXL
Liebert
Capacity 1000VA 900W.( rack 2U/tower)
PF 0.9, True Online,Pure Sine Wave
Output Voltage 220/230 (default) /240V
Output Connections 8x IEC60320 C13
input connection IEC60320 C14
Dims 438 x 430 x 86 mm, 16 kgs
part number :
01203734
Comaptible External Battery Cabinet
GXE3-EBC24VRT2U
3 Yrs On Site Replacement Warranty
ราคา update บาท ( #0.00บาท vat )
GXE3-1500IRT2UXL Liebert
Capacity 1500VA 1350W.( rack 2U/tower)
PF 0.9, True Online,Pure Sine Wave
Output Voltage 220/230 (default) /240V
Output Connections 8x IEC60320 C13
input connection IEC60320 C14
Dims 560 x 600 x 235 mm, 19.6 kgs
part number :
01203735
Comaptible External Battery Cabinet
GXE3-EBC36VRT2U
3 Yrs On Site Replacement Warranty
ราคา update บาท ( #0.00บาท vat )
