Cyberpower CPS1000E
single Phase
Capacity (VA) 1000 Capacity (Watts) 700
INPUT
Generator Compatibility Yes
Nominal Input Voltage ( Vac ) 220/230/240
Input Voltage Range ( Vac ) 140 ~ 270 Vac
Input Frequency ( Hz ) 50 ± 5/60 ± 5
Input Frequency Detection Auto-sensing
Input Connector Type IEC C13
DC Input Voltage ( Vdc ) 12
OUTPUT
Output Waveform 40%-100% Load, Simulated Sine Wave, 0%-40% Load, Pure Sine Wave
Output Voltage(s) ( Vac ) 220 ± 5%, 230 ± 5%, 240 ± 5%
Output Voltage Setting Configurable
Output Frequency ( Hz ) 50 ± 1%. 60 ± 1%
Automatic Voltage Regulation (AVR) Double Boost, Single Buck
Overload Protection (On Utility) Circuit Breaker
Overload Protection (On Battery) Internal Current Limiting
Manual Switch Bypass Only
Outlet(s) - Total 2
Outlet Type AS x 2
Auto-charge Yes
Typical Transfer Time ( ms ) 10
SURGE PROTECTION & FILTERING
Lightning / Surge Protection Yes
MANAGEMENT & COMMUNICATIONS
LCD Panel Yes,
LCD Information Display Operation Type, Power Status, Battery Status, Load Status, Other Information, Event & Log
LCD Setting & Control Alarm Setting, Input & Output, Battery Setting
LED Indicators Power On, Wiring Fault
Audible Alarms Battery Mode, Low Battery, Overload, Overcharge, Overheat
PHYSICAL Form Factor Tower
Enclosure Construction Metal
Color Yellow
PHYSICAL SIZE Dimensions (WxHxD) (mm.) 153 x 241 x 208 Weight (kg.) 9.4
ENVIRONMENTAL
Operating Temperature (°C) 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ) 0 ~ 95
Operating Elevation ( feet/meters ) 0-9,843 feet (0-3,000 meters)
Storage Temperature (°C) -5 ~ 45
Storage Relative Humidity (Non-condensing) ( % ) 0 ~ 95
Storage Elevation ( feet/meters ) 0-49,213 feet (0-15,000 meters)
CERTIFICATIONS Certifications CE, EAC, SONCAP
RoHS Yes
EXTERNAL BATTERY (OPTIONAL)
Battery Type Sealed Lead-acid
Battery Voltage ( Vdc ) 12
WARRANTYProduct Warranty Period (Year) 2
CyberPower CPS1000E
provides backup power when regular systems fail for a wide range of applications including household appliances, office systems, banking & retail, and industrial sites. It provides noiseless, fuel-less, and clean Pure Sine Wave output with adjustable Automatic Voltage Regulation (AVR), making it a greener and better solution over traditional generators.
The product is also generator-compatible, making it suitable for existing installations. It can accommodate unlimited number of batteries for additional runtime capacity, and the high charging current allows quick recharging up to five times faster. Users can access information of power/battery conditions and configure advanced settings, including alert of potential power problems and switching mode at the push of a button.
FEATURES
Generator Compatible
Automatic Voltage Regulation (AVR)
Quick Transfer Time
LED Status Indicators
Automatic Switch-over
Auto-charge
Multifunction LCD Readout
CPS Series ไอเท็มเด็ด ตอบโจทย์ทุกการใช้งาน
จะตู้เย็น, ตู้แช่, พัดลม, หรือเครื่องใช้ไฟฟ้าประเภทขดลวดอีกหลายชนิดก็ใช้ได้
ไม่ว่าจะใช้งานแบบไหน CPS Series ก็สามารถสำรองไฟได้
หากเกิดเหตุฉุกเฉิน ไฟฟ้าดับเป็นเวลานานเเค่ไหน

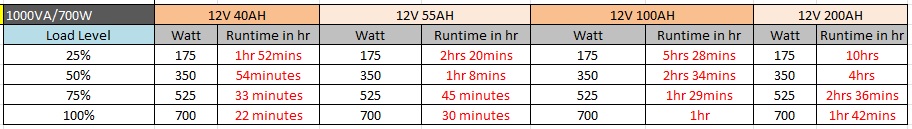

CPS1000E สามารถสำรองได้สูงสุดถึง 8 ชั่วโมง
แถมยังช่วยปกป้องเครื่องใช้ไฟฟ้าไม่ให้เสียหาย
จากปัญหาไฟตก ไฟดับหรือไฟกระชากอีกด้วย
- ใช้งานง่าย มีหลายรุ่น ให้เลือกใช้ตามความเหมาะสมในการใช้งาน
- Automatic Voltage Regulation (AVR) ระบบควบคุมแรงดันไฟฟ้าอัตโนมัติ ที่ช่วยควบคุมแรงดันไฟฟ้าต่ำ และแรงดันไฟฟ้าเกิน
- Generator Compatible สามารถรับไฟจากเครื่องปั่นไฟมาใช้ได้โดยไม่มีปัญหากับตัวเครื่องและโหลดที่ต่ออยู่ เพราะเครื่องปั่นไฟจะมีแรงดันกับความถี่ที่กว้างและไม่นิ่ง
- LCD Status Display หน้าจอ LCD บอกสถานการทางานของเครื่อง UPS, บอกปริมาณของ
- Load ที่ใช้งานผ่าน UPS, บอกปริมาณของแบตเตอรี่, บอกแรงดันไฟขาเข้า และขาออก จากUPS และบอกเวลาที่สารองไฟได้ในขณะนั้น
- สามารถรับไฟจากเครื่องปั่นไฟมาใช้ได้โดยไม่มีปัญหากับตัวเครื่องและโหลดที่ต่ออยู่ เพราะเครื่องปั่นไฟจะมีแรงดันกับความถี่ที่กว้างและไม่นิ่ง
- ใช้งานง่าย แค่เปิดเครื่องไว้ ปลอดภัย มั่นใจ เครื่องใช้ไฟฟ้าไม่พังแน่นอน
- รับประกันสินค้านานถึง 2 ปี รวมถึงแบตเตอรี่ด้วย
- บริการหลังการขาย On-Site Service
*** ใส่ Battery ได้ 1 ก้อนเท่านั้น เริ่มต้น 40AH-100AH



ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005
ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005 080 964 2745
ThailandUPS.com
ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823


คุณสมบัติเบื้องต้นของ CyberPower EPS
(ผลิตภัณฑ์ที่เหมำะกับอุปกรณ์ไฟฟ้ภายในบ้าน ตั้งแต่ แอร์ พัดลม ตู้เย็น ทีวี วิทยุ หม้อหุงข้าว ปั๊มน้ำ กล้องวงจรปิด และอื่นๆ )
เครื่อง Cyber Power EPS สามารถใช้ไฟได้สูงสุด 700 Watt ถึง 5250 Watt รองรับแบตเตอรี่ 12V 100Ah -200Ah
เพิ่มระยะเวลาสำรองได้ตามความต้องการ เพราะสามารถเพิ่มขยายแบตเตอรี่ได้อย่างไม่จำกัด (ต่อแบบขนาน)มีระบบปรับแรงดันไฟฟ้าอัตโนมัติสามารถรองรับกระแสไฟขาเข้า 140Vac - 300Vac
มีระบบป้องกันไฟตกและไฟกระชากถึง 400V
มีจอ LCD แสดงผลแบบ มัตติฟังก์ชั่น มีระบบเตือนด้วยเสียง เมื่อไฟฟ้าดับ / แบตเตอรี่ต่ำ / ใช้กระแสไฟเกิน
ระบบชาร์จแบตเตอรี่อัจฉริยะที่มีประสิทธิภาพและรวดเร็ว
กระแสไฟที่ได้ในโหมดแบตเตอรี่เป็นแบบ Pure Sine Wave 220Vac +/- 5% ทำให้ถนอมอุปกรณ์ไฟฟ้า สลับการทำงานในโหมดแบตเตอรี่น้อยกว่า 10ms ทำให้เครื่องใช้ไฟฟ้าทำงานได้ต่อเนื่องไม่สะดุด อุปกรณ์ที่รองรับ Motor, Pump, Generator, ตู้เย็น อื่น ๆ (กำลัง watt จะต้องไม่สูงกว่าที่กำหนดของรุ่น) มีโปรแกรมควบคุมผ่าน LAN ได้ในรุ่น PRO สามารถต่อระหว่างเครื่อง Generator กับโหลด เพื่อปรับแรงดันไม่ให้อุกรณ์เสียหายด้วยระบบ AVR
