VP1200ELCD | Cyberpower | VP Series | Uninterruptible Power Supply (Ups)
Phase Single Phase
Form Factor Tower
UPS Topology Line-interactive
Energy Saving Technology GreenPower UPS™ Bypass Technology
INPUT
Generator Compatibility Yes
Nominal Input Voltage ( Vac ) 230 ± 10%
Input Voltage Range ( Vac ) 167 ~ 295
Input Frequency ( Hz ) 50 ± 5, 60 ± 5
Input Frequency Detection Auto-sensing
Rated Input Current ( A ) 5.2
Input Connector Type IEC C14
Detachable Power Cord Plug Type NEMA 5-15P x 1
Power Cord Length (m.) 1.5
OUTPUT
Capacity (VA) 1200
Capacity (Watts) 720
On Battery Waveform Simulated Sine Wave
On Battery Voltage(s) ( Vac ) 230 ± 10%
On Battery Frequency ( Hz ) 50 ± 1%,60 ± 1%
Automatic Voltage Regulation (AVR) Single Boost, Single Buck
Overload Protection Circuit Breaker
Outlet(s) - Total 5
Outlet Type AS x 5
Outlet(s) - Battery & Surge Protected 3
Outlet(s) - Surge-Only Protected 2
Typical Transfer Time ( ms ) 4
BATTERY
Runtime at Half Load ( min ) 12
Runtime at Full Load ( min ) 4
Typical Recharge Time ( Hours ) 8
Start On Battery Yes
User-replaceable No
Battery Type Sealed Lead-acid
SURGE PROTECTION & FILTERING
Surge Suppression ( Joules ) 450
EMI/RFI Filtration Yes
Phone/Network Protection RJ11/RJ45 (Combo) 1-in, 1-out
MANAGEMENT & COMMUNICATIONSLCD Panel Yes
LCD Information Display
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning,
Other Information
LCD Setting & Control
Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning
LED Indicators
Power On
HID Compliant USB Port(s) 1
Audible Alarms
Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs ) USB Cable x1
Ethernet Data Transmission Speed Up to 1Gbps
Power Management Software PowerPanel Personal (Recommended)
PHYSICALEnclosure Construction Plastic
Color Black
PHYSICAL SIZE - Dimensions (WxHxD) (mm.) 100 x 281 x 355
Weight (kg.) 9.62
ENVIRONMENTAL
Operating Temperature (°C) 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ) 0 ~ 90
Operating Elevation ( feet/meters ) 0-9,843 feet (0-3,000 meters)
Storage Temperature (°C) -20 ~ 50
Storage Relative Humidity (Non-condensing) ( % ) 0 ~ 90
Storage Elevation ( feet/meters ) 0-9,843 feet (0-3,000 meters)
Online Thermal Dissipation ( BTU/hr ) 74
Audible Noise at 1.0M from Surface of Unit ( dBA )50
CERTIFICATIONSRoHS Yes
WARRANTY
Product Warranty Period (Year) 2
Battery Warranty Period (Year) 2
CyberPower VP1200ELCD offers home and office users a reliable battery backup and safeguards office PCs and other electronic devices from surges, spikes, brownouts and other power incidents. Designed with GreenPower UPS™ Technology to improve operating efficiency and to minimize energy consumption, users can enjoy significant energy cost savings over conventional UPS systems. The UPS provides Automatic Voltage Regulation (AVR) to maintain safe voltage for connected equipment.
The UPS provides multifunctional LCD readout to display clear power and battery conditions. The product features data line protection with high-speed transmission to safeguard phones, network and communication equipment against surge/spike as well as supply 1Gbps speed to transmit data. The UPS is also compatible with PowerPanel Power Management Software to achieve real-time monitoring and configuration.
FEATURES
Line-interactive UPS Topology, Generator Compatible, Automatic Voltage Regulation (AVR), High-speed Ethernet Data Transmission
Surge and Spike Protection, PowerPanel Management Software
Energy Saving Technology, Simulated Sine Wave Output, LCD Status Display, USB Connectivity Port, Serial Connectivity Port
WHAT'S IN THE BOX
VP1200ELCD UPS USB Cable, User's Manual, Product Registration Card
* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.

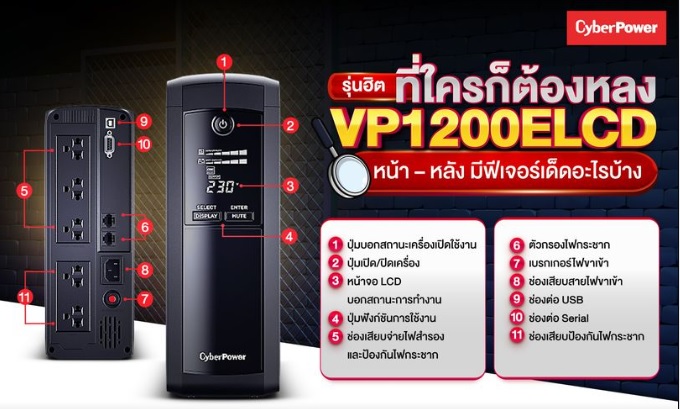

VP1200ELCD อัตราการทำงาน 1200VA/720W มีอะไรบ้าง มาดูกัน
หน้าเครื่อง
1. Power On Indicator ปุ่มบอกสถานะเครื่องเปิดใช้งาน
2. Power On/Off Switch ปุ่มเปิด/ปิดเครื่อง
3. LCD Display Panel หน้าจอ LCD บอกสถานะการทำงานเครื่องสำรองไฟฟ้า
4. Function Button(s) ปุ่มฟังก์ชันการใช้งาน
หลังเครื่อง
5. Battery Backup & Surge Protected Outlets ช่องเสียบจ่ายไฟสำรองและป้องกันไฟกระชาก
6. Communica Protection Ports RJ11/RJ45 ตัวกรองไฟกระชากผ่านสาย RJ11 หรือ RJ45
7. Input Circuit Breaker เบรกเกอร์ไฟขาเข้า
8. AC Inlet ช่องเสียบสายไฟขาเข้า
9. USB Port ช่องต่อ Serial สำหรับเชื่อมต่อคอมพิวเตอร์เพื่อใช้โปรแกรม PowerPanel® Personal
10. Serial Port ช่องต่อ Serial สำหรับเชื่อมต่อคอมพิวเตอร์เพื่อใช้โปรแกรม PowerPanel® Personal
11. Surge Protected Outlets ช่องเสียบป้องกันไฟกระชาก
รับประกันสินค้านานถึง 2 ปี รวมถึงแบตเตอรี่ด้วยบริการหลังการขาย On-Site Service






ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005 080 964 2745
