RT6K-2Y, RT6000-2y model
RT Series, Single Phase ( Rack/TOWER ) -
Power Rating 6kVA/6000W ( true online double-conversion )
Nominal Voltage 200*, 208*, 220, 230, 240 Vac
Voltage range 100 ~ 300 Vac
Frequency 40 ~ 70 Hz
Power Factor > 0.99 (full load)
Current Harmonic Distortion <5% ( full load )
Electrical Connection Terminal block
Voltage 200/208/220/230(default)/240 Vac (single phase
Voltage Regulation +/- 1% (static); +/- 2% (typical)
Frequency 50/60 Hz +/- 0.05 Hz
Current Harmonic Distortion < 2% (linear load), <3% (non-linear load)
Overload Capability 106 ~ 110%: 10 minutes; 111 ~ 125%: 5 minutes; 126 ~ 150%: 30 seconds
Crest Factor 3:1
Electrical Connection Terminal block
AC-AC 92% ( full load )
ECO Mode 96% ( full load )
Nominal Voltage 192 Vdc
Battery type : VRLA12v5Ah, 16 pcs ( 1 string of 16 batteries )
Charge Current Built-in: maximum 4A (adjustable);
Additional charger board (optional): maximum 4A (internal installation)
Electrical Connection Exclusive cable
AUDIBLE NOISE 54 dBA
OTHERS FEATURES Parallel Redundancy 1+1
Remote Control REPO; Remote On/Off
INTERFACES RS232 x 1, SNMP slot x 1, Smart slot x 1, Parallel port x 1
CONFORMANCE SAFTEY & EMC CE, TUV, EN62040-1; CISPR 22 Class A
Dimensions (Wx Dx H) 440 x 671 x 89 mm - UPS, 440 x 638 x 89 mm for EXTERNAL BATTERY )
Weight 15.5 kgs FOR UPS, Weight 36 kgs FOR EXTERNAL BATTERY
ENVIRONMENT
Operating Temperature 0 ~ 40C
Relative Humidity 5% ~ 95% (no condensing)
2 years warranty ( Onsite service )
Delta UPS - Amplon Family
RT Series, Single Phase ( Rack/TOWER ) -
Power Rating 6kVA/6000W ( true online double-conversion )
INPUT
Nominal Voltage 200*, 208*, 220, 230, 240 Vac
Voltage range 100 ~ 300 Vac
Frequency 40 ~ 70 Hz
Power Factor > 0.99 (full load)
Current Harmonic Distortion <5% ( full load )
Electrical Connection Terminal block
OUTPUT
Voltage 200/208/220/230(default)/240 Vac (single phase
Voltage Regulation +/- 1% (static); +/- 2% (typical)
Frequency 50/60 Hz +/- 0.05 Hz
Current Harmonic Distortion < 2% (linear load), <3% (non-linear load)
Overload Capability 106 ~ 110%: 10 minutes; 111 ~ 125%: 5 minutes; 126 ~ 150%: 30 seconds
Crest Factor 3:1
Electrical Connection Terminal block
EFFICIENCY
AC-AC 92% ( full load )
ECO Mode 96% ( full load )
BATTERY
Nominal Voltage 192 Vdc
Battery type : VRLA12v5Ah, 16 pcs ( 1 string of 16 batteries )
Charge Current Built-in: maximum 4A (adjustable);
Additional charger board (optional): maximum 4A (internal installation)
Electrical Connection Exclusive cable
AUDIBLE NOISE 54 dBA
OTHERS FEATURES Parallel Redundancy 1+1
Remote Control REPO; Remote On/Off
INTERFACES RS232 x 1, SNMP slot x 1, Smart slot x 1, Parallel port x 1
CONFORMANCE SAFTEY & EMC CE, TUV, EN62040-1; CISPR 22 Class A
PHYSICAL
Dimensions (Wx Dx H) 440 x 671 x 89 mm - UPS, 440 x 638 x 89 mm for EXTERNAL BATTERY )
Weight 15.5 kgs FOR UPS, Weight 36 kgs FOR EXTERNAL BATTERY
ENVIRONMENT
Operating Temperature 0 ~ 40C
Relative Humidity 5% ~ 95% (no condensing)
2 years warranty ( Onsite service )
Delta UPS - Amplon Family
RT Series 5/6/8/10 kVA, Single Phase
The Amplon RT Series 5-20kVA is an online double-conversion UPS that provides best-in-class designs in compact 2U size, high power density, system efficiency, and versatile configura- tions to fulfill customersʼ requirements. RT Series 5-20kVA UPS is the first in the market that offers standard Li-ion external battery cabinets, which deliver better power density and sustainability. Along with the parallel capacity of up to four units, the new series is the ideal small power UPS for mission-critical applications, such as servers, data centers, telecommunications, and manufacturing.
Features:
• True online double-conversion topology and zero transfer time to battery provides 24/7 full-time protection
• Unity output power factor guarantees no de-rating with loads and provides permanent 100% kW
• Best-in-class AC-AC efficiency of up to 96.5% and 99% in ECO mode lowers energy costs
• Automatic fan speed control maximizes system efficiency and significantly reduces audible noise and prolongsbattery life
• Fan failure detection sends early warnings to facilitate predictive maintenance of UPS
• Programmable load bank disconnects non-critical loads when a blackout occurs and reserves more battery power for critical loads
• Up to four units parallel capacity allows redundancy and load expansion
• Hot swappable batteries ensure continuous operation even when batteries are being replaced
• VRLA and Li-ion External Battery Cabinet (EBC) are available for scalable runtime
• The Maintenance Bypass Breaker (MBB) is optional for easy UPS replacement without powering down critical systems
• The rRPP (Rack Remote Power Panel), which can be integrated with standard server racks, simplifies power output distribution and power monitoring
• Common battery configuration is supported in UPS parallel mode to save installation space and additional battery costs
RT Series 5/6/8/10 kVA, Single Phase
The Amplon RT Series 5-20kVA is an online double-conversion UPS that provides best-in-class designs in compact 2U size, high power density, system efficiency, and versatile configura- tions to fulfill customersʼ requirements. RT Series 5-20kVA UPS is the first in the market that offers standard Li-ion external battery cabinets, which deliver better power density and sustainability. Along with the parallel capacity of up to four units, the new series is the ideal small power UPS for mission-critical applications, such as servers, data centers, telecommunications, and manufacturing.
Features:
• True online double-conversion topology and zero transfer time to battery provides 24/7 full-time protection
• Unity output power factor guarantees no de-rating with loads and provides permanent 100% kW
• Best-in-class AC-AC efficiency of up to 96.5% and 99% in ECO mode lowers energy costs
• Automatic fan speed control maximizes system efficiency and significantly reduces audible noise and prolongsbattery life
• Fan failure detection sends early warnings to facilitate predictive maintenance of UPS
• Programmable load bank disconnects non-critical loads when a blackout occurs and reserves more battery power for critical loads
• Up to four units parallel capacity allows redundancy and load expansion
• Hot swappable batteries ensure continuous operation even when batteries are being replaced
• VRLA and Li-ion External Battery Cabinet (EBC) are available for scalable runtime
• The Maintenance Bypass Breaker (MBB) is optional for easy UPS replacement without powering down critical systems
• The rRPP (Rack Remote Power Panel), which can be integrated with standard server racks, simplifies power output distribution and power monitoring
• Common battery configuration is supported in UPS parallel mode to save installation space and additional battery costs
ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005 080 964 2745
Delta RT-6000VA-3Y
ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
เครื่องสำรองไฟเดลต้า Delta UPS รุ่น RT-6K-2Y หรือ RT-6000 เป็นระบบ True online ups กำลังไฟ 6000VA 6000Watts มีหน้าจอ LCD แสดงสถานะของเครื่อง delta รุ่นนี้ รับประกัน 2 ปี onsite ทั่วประเทศ และฟรี ติดตั้ง delta ups รุ่นนี้ ใช้ battery 12v5.4Ah จำนวน 16 ลูก สอบถามหรือปรึกษาเพิ่มเติมได้ที่นี้ เลยนะค่ะ

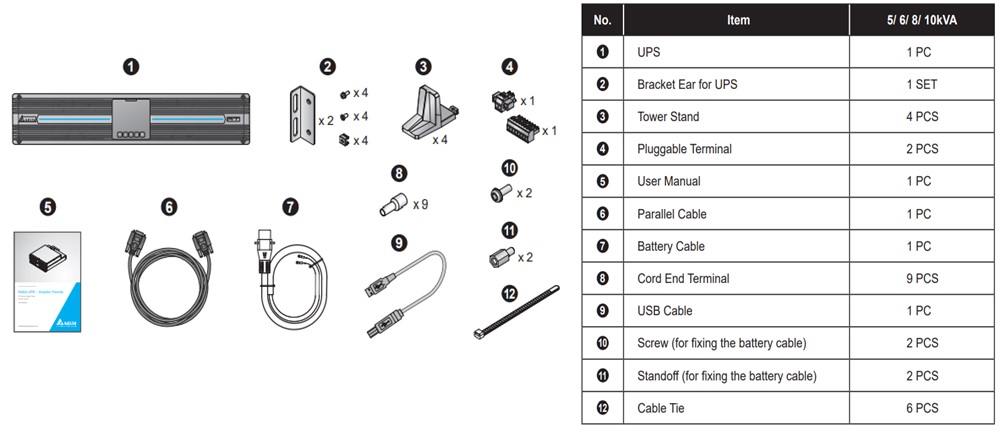

Package list for Delta RT Series -
Delta RT-5000VA - 10kVA
