Delta RT Pro-3K
ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
DELTA RT Pro 3K UPS (Single Phase)
Topology Online double-conversion
Power Rating 3 kVA 3 kW
Nominal Voltage 200/ 208/ 220/ 230/ 240 Vac, 1P2W+PE
Voltage Range 175-280 Vac (100% load); 120-175 Vac
(with derating to 70-100% load)(1)
Frequency 40-70 Hz
Power Factor 0.99 (100% load)
Connection IEC C20
Nominal Voltage 200(2)/ 208(2)/ 220/ 230/ 240 Vac, 1P2W+PE
Voltage Regulation ±3% (linear load)
Frequency 50/60 ± 0.05 Hz
Total Harmonic Distortion (THDv) ≤ 2% (linear load)
Power Factor 1
Connection IEC C13 ×2, IEC C19 x 1
Programmable IEC C13 ×2 ×2 groups
Overload Capability < 105% continuous; 105-125%: 1 min ± 5 secs;
126-150%: 15 ± 3 secs; 151-155%: 0.1 secs
Current Crest Ratio 3:1
Online Mode 94.3%
ECO Mode 99%
Battery Type VRLA
Nominal Voltage 72 Vdc
Quantity 6 pcs
Runtime 100% load 2.7 mins
70% load 5.2 mins
Charge Current Up to 2.5 A
Display LCD display with LED indicators
Port USB, RS-232, REPO, Mini Slot, Input dry contact x1,
Output dry contact x3
REPO (Emergency Power Off) Standard
Dimensions (W x D x H) 440 x 565 x 88 mm
Net Weight 28 kg
Operating Temperature 0 to 55 °C(3)
Humidity 5-95% (non-condensing)
Audible Noise(4) < 40 dBA
Altitude 0-3,000 m (derating 1%/100 m from 1,000-3,000 m)
Ingress Protection IP20
Safety CE, UL, cUL, RCM, UKCA
EMC IEC 62040-2
Sustainability RoHS, REACH
3 years warranty - onsite service
Technical Specifications
Model RT Pro-3K (
External batteryexpansion is available for this model. )
Topology Online double-conversion
Power Rating 3 kVA 3 kW
INPUT
Nominal Voltage 200/ 208/ 220/ 230/ 240 Vac, 1P2W+PE
Voltage Range 175-280 Vac (100% load); 120-175 Vac
(with derating to 70-100% load)(1)
Frequency 40-70 Hz
Power Factor 0.99 (100% load)
Connection IEC C20
OUTPUT
Nominal Voltage 200(2)/ 208(2)/ 220/ 230/ 240 Vac, 1P2W+PE
Voltage Regulation ±3% (linear load)
Frequency 50/60 ± 0.05 Hz
Total Harmonic Distortion (THDv) ≤ 2% (linear load)
Power Factor 1
Connection IEC C13 ×2, IEC C19 x 1
Programmable IEC C13 ×2 ×2 groups
Overload Capability < 105% continuous; 105-125%: 1 min ± 5 secs;
126-150%: 15 ± 3 secs; 151-155%: 0.1 secs
Current Crest Ratio 3:1
EFFICIENCY
Online Mode 94.3%
ECO Mode 99%
BATTERY
Battery Type VRLA
Nominal Voltage 72 Vdc
Quantity 6 pcs

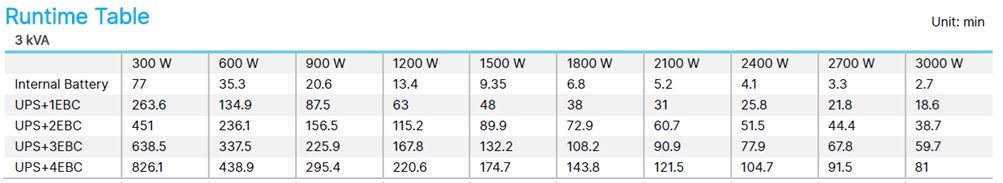

Runtime 100% load 2.7 mins
70% load 5.2 mins
Charge Current Up to 2.5 A
COMMUNICATION INTERFACE
Display LCD display with LED indicators
Port USB, RS-232, REPO, Mini Slot, Input dry contact x1,
Output dry contact x3
REPO (Emergency Power Off) Standard
PHYSICAL
Dimensions (W x D x H) 440 x 565 x 88 mm
Net Weight 28 kg
ENVIRONMENT
Operating Temperature 0 to 55 °C(3)
Humidity 5-95% (non-condensing)
Audible Noise(4) < 40 dBA
Altitude 0-3,000 m (derating 1%/100 m from 1,000-3,000 m)
Ingress Protection IP20
CONFORMANCE
Safety CE, UL, cUL, RCM, UKCA
EMC IEC 62040-2
Sustainability RoHS, REACH
Warranty
3 years warranty - onsite service
this model supports additional batteries
รุ่นนี้ สามารถเพิ่ม external batteries ได้
รุ่นนี้ สามารถเพิ่ม external batteries ได้
Delta RT Pro-1K [ delta ups 1kVA ]
Capacity : 1000VA/1000W, Online
Battery type : VRLA,24 Vdc, 2 pcs
PF 0.99(100% load)
Input connection IEC C14
Output : IEC C13 x 2
Backup time : 2.4 minutes(100% load )
4.6 minutes(70% load)
Dims UPS : 440 x 335 x 88 mm (11.7Kgs )
ราคา UPDATE บาท ( # 0.00บาท VAT )
RT-1K External Battery Cabinet
(Part number: BBA022B2009035)
Dims 440 x 335 x 88 mm ( 15.2 kgs)
Delta RT Pro-2K [ delta ups 2kVA ]
Capacity : 2000VA/2000W, Online
Battery type : VRLA,48 Vdc, 4 pcs
PF 0.99(100% load)
Input connection IEC C213 x2 IEC C19 x1
Output : IEC C13 x 2
Backup time : 2.5 minutes(100% load )
4.9 minutes(70% load)
Dims UPS : 440 x 430 x 88 mm (21 Kgs )
ราคา UPDATE บาท ( # 0.00บาท VAT )
RT-2K External Battery Cabinet
(Part number: BBA042B5009035)
Dims 440 x 430 x 88 mm ( 28.5 kgs)
