MX-1.1K, MX 1100 Model
Technical Specification
Power Rating 1100VA / 990W
Input
Voltage Range 200V: 150-234V / 208V: 156-243V / 220V: 162-268V /
230V: 170-280V / 240V: 177-290V
Nominal Frequency 50/60 Hz (Auto-Detection)
Connection IEC C14
Phase Single phase with ground
Output
Voltage 200 / 208 / 220 / 230 / 240 Vac
Voltage Regulation 1.5% (Batt. Mode)
Frequency Range 50 Hz or 60 Hz 1 Hz
(Batt. Mode)
Connection IEC C13 (4+4)
Overload 103% ~ 120%: 5 minutes (1 minute @ Battery mode),
120% ~ 150%: 10 seconds,
>150%: UPS shutdown immediately
Current Crest Ratio 3:1
Harmonic Distortion Linear load (full load) =2%, Non-linear load (full load) =5%
Waveform (Batt. Mode) Pure Sinewave
Battery Battery Type 12V/9Ah
Sealed lead-acid battery
Numbers 2
Recharge Time 4 hours recover to 90% capacity
Interface
Standard RS-232 Port x 1, USB Port x 1, MINI Slot x 1, Surge Protection, REPO
Efficiency
Normal Mode 98%
AVR Mode 96.5%
Environment Operating Temperature 0 ~ 40ฐC
Relative Humidity 20 ~ 90 % RH (non-condensing)
Noise Level < 45 dBA
Physical Dimensions (W x D x H) 438 x 410 x 88 mm
Net Weight (kg) 14.1
3 years warranty ( Onsite service )
DELTA MX-SERIES - TOWER/Rack
Technical Specification
Power Rating 1100VA / 990W
Input
Voltage Range 200V: 150-234V / 208V: 156-243V / 220V: 162-268V /
230V: 170-280V / 240V: 177-290V
Nominal Frequency 50/60 Hz (Auto-Detection)
Connection IEC C14
Phase Single phase with ground
Output
Voltage 200 / 208 / 220 / 230 / 240 Vac
Voltage Regulation 1.5% (Batt. Mode)
Frequency Range 50 Hz or 60 Hz 1 Hz
(Batt. Mode)
Connection IEC C13 (4+4)
Overload 103% ~ 120%: 5 minutes (1 minute @ Battery mode),
120% ~ 150%: 10 seconds,
>150%: UPS shutdown immediately
Current Crest Ratio 3:1
Harmonic Distortion Linear load (full load) =2%, Non-linear load (full load) =5%
Waveform (Batt. Mode) Pure Sinewave
Battery Battery Type 12V/9Ah
Sealed lead-acid battery
Numbers 2
Recharge Time 4 hours recover to 90% capacity
Interface
Standard RS-232 Port x 1, USB Port x 1, MINI Slot x 1, Surge Protection, REPO
Efficiency
Normal Mode 98%
AVR Mode 96.5%
Environment Operating Temperature 0 ~ 40ฐC
Relative Humidity 20 ~ 90 % RH (non-condensing)
Noise Level < 45 dBA
Physical Dimensions (W x D x H) 438 x 410 x 88 mm
Net Weight (kg) 14.1
3 years warranty ( Onsite service )
Delta UPS–Amplon Family
MX Series, Line-Interactiveb1.1/2/3kVA
Reliable Power Protection for Small and Medium Business
The Amplon MX line-interactive UPS provides pure sine-wave quality compatibility in versatile application in order to protect devices and prevent small-and-medium businesses from power failure and voltage variations in small footprint. The Amplon MX series features enhanced output power factor 0.9, AVR Efficiency up to 96.5%, resulting in a greater power supply for critical loads at significantly less operating cost.
Availability
• Microprocessor-based line interactive design for fast response to power disturbances
• Programmable load bank disconnects non-critical loads when a blackout occurs and reserves more battery power for critical loads
• Automatic voltage regulator (AVR) delivers stable output voltage during brownouts or over-voltages
• Wide input voltage range allows the UPS to work in harsh electrical environments
• Hot-swappable battery design to protect equipment during battery replacement
Flexibility
• Supports both rack and tower installation
• Excellent management through a user-friendly graphical and easy-shift LCD display to suit different installation format
• Supports multiple communication interfaces, including USB port, RS-232, Mini Slot, Surge Protection, REPO for enhanced monitoring and manageability
Low Total Cost of Ownership
• Output power factor is up to 0.9 to provide more real power to critical loads
• High efficiency normal mode reach at 98% and 98.5% for 3kVA
• Wide input range and protection against over voltage prolongs battery life
MX Series, Line-Interactiveb1.1/2/3kVA
Reliable Power Protection for Small and Medium Business
The Amplon MX line-interactive UPS provides pure sine-wave quality compatibility in versatile application in order to protect devices and prevent small-and-medium businesses from power failure and voltage variations in small footprint. The Amplon MX series features enhanced output power factor 0.9, AVR Efficiency up to 96.5%, resulting in a greater power supply for critical loads at significantly less operating cost.
Availability
• Microprocessor-based line interactive design for fast response to power disturbances
• Programmable load bank disconnects non-critical loads when a blackout occurs and reserves more battery power for critical loads
• Automatic voltage regulator (AVR) delivers stable output voltage during brownouts or over-voltages
• Wide input voltage range allows the UPS to work in harsh electrical environments
• Hot-swappable battery design to protect equipment during battery replacement
Flexibility
• Supports both rack and tower installation
• Excellent management through a user-friendly graphical and easy-shift LCD display to suit different installation format
• Supports multiple communication interfaces, including USB port, RS-232, Mini Slot, Surge Protection, REPO for enhanced monitoring and manageability
Low Total Cost of Ownership
• Output power factor is up to 0.9 to provide more real power to critical loads
• High efficiency normal mode reach at 98% and 98.5% for 3kVA
• Wide input range and protection against over voltage prolongs battery life

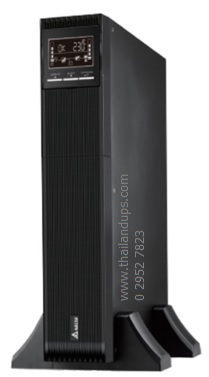

เครื่องสำรองไฟเดลต้า
delta MX-1.1kva
หรือMX-1100
เป็นแบบ line interactive ( Pure Sinewave ) ราคาไม่สูง หน้าจอเป็นแบบ LCD แสดงสถานะต่างๆของเครื่อง มีช่อง output ถึง 8 ช่อง ที่สำคัญมี port ด้านหลังแบบ usb, series กำลังไฟ มีมากถึง 1100 VA 990 วัตต์ ส่วนเรื่อง battery delta MX1100 รุ่นนี้ ใช้ battery 12V9Ah ถึง 2 ลูก ทำให้สำรองไฟ ได้นาน สอบถามรายละเอียดเพิ่มเติมได้ที่นี้ เลยนะค่ะPacking list for Delta N Series -
Delta MX1.1kva, Delta MX-2kva and Delta MX-3kva
