Delta RTG3-1K Gen3

Topology Online double-conversion
Power rating 1kVA 0.9W

Input

Nominal Voltage 208/220/230/240Vac, 1P2W+PE
Voltage Range 180 - 280 Vac ( 100%load);
120 -300Vac (50-100% load)
Frequency Range 40 -70 hz
Power Factor 0.99 (100%load)
Connection IEC C14

Output

Nominal Voltage 208/220/230/240Vac, 1P2W+PE
Voltage Regulation +/-1%
Frequency 50/60 +/- 3Hz
total Harmonic Distortion(TJDv) <3% (linear load)
Power Factor 0.9
Connection IEC C13 * 4
Overload capacity < 105-110% : 10mins; 110-130%:30 secs; 130-150% : 3secs
Current crest ratio 3:1

Efficiency

Online Mode 88%
ECO Mode 93%

Battery

Battery type VRLA, inbuilt battery
Nominal Voltage 24 Vdc
Quantity 2 pcs
Runtime 100% load : 3.1 mins, 70% load : 6.1 mins
Charging Time 4 hours to 90%
Charge Current 1A

Communication interface

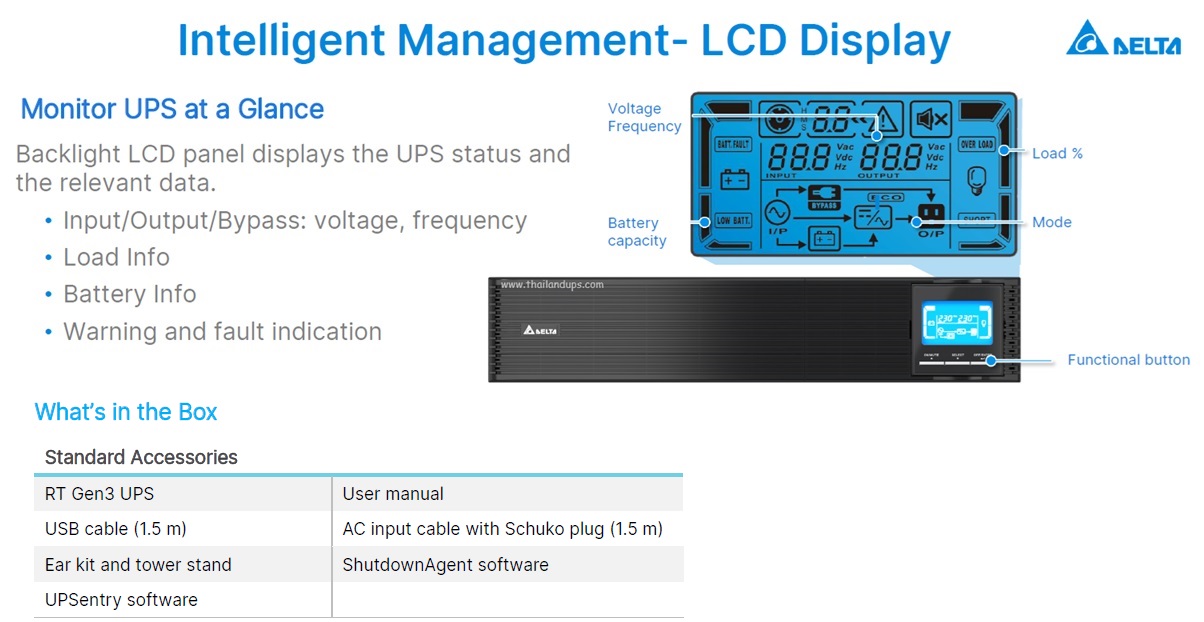

Display : LCD display with LED indicators
Port : USB, RS232, Mini slot ( option for mini SNMP, mini MODBUS and mini relay I/O card )

Physical

Dimensions ( W x D x H ) 438 * 310 * 86 mm
Net Weight 10.6 Kgs

Environment

Operating Temperature 0 to 50 degree C ( 40 to 50 degree C de-rating to 70% load)
Humidity 10 - 90% ( non-condensing)
Audible Noise < 50dBA
Altitude 0-3000m ( derating 1%/100m from 2000 - 3000m)
Storage temperature -20 to 50 degree C
Ingress Protection IP20

Conformance

Safety CE,UKCA, KC
EMC IEC 62940-2
Sustainability RoHS,Reach

Warranty

3 years warranty - onsite service
