Cyberpower UT1050EG
GENERALPhase Single Phase
Form Factor Tower
UPS Topology Line-interactive
Energy Saving Technology GreenPower UPS™ Bypass Technology
INPU
T
Generator Compatibility Yes
Nominal Input Voltage ( Vac ) 230 ± 10%
Input Voltage Range ( Vac ) 165 ~ 290
Input Frequency ( Hz )50 ± 5,60 ± 5
Input Frequency Detection Auto-sensing
Rated Input Current ( A ) 4.56
Input Connector Type NEMA 5-15P
Power Cord Length (m.) 1.2
OUTPUT
Capacity (VA)1050
Capacity (Watts) 630
On Battery Waveform Simulated Sine Wave
On Battery Voltage(s) ( Vac ) 230 ± 10%
On Battery Frequency ( Hz ) 50 ± 1%, 60 ± 1%
Automatic Voltage Regulation (AVR) Single Boost, Single Buck
Overload Protection Circuit Breaker
Outlet(s) - Total 4
Outlet Type Universal x 4
Outlet(s) - Battery & Surge Protected 4
Typical Transfer Time ( ms ) 4
BATTERY
Runtime at 60W ( min ) 65
Runtime at 90W ( min ) 43
Runtime at 200W ( min ) 14
Typical Recharge Time ( Hours ) 6
Start On Battery Yes
User-replaceable No
Battery Type Sealed Lead-acid
SURGE PROTECTION & FILTERINGSurge Suppression ( Joules ) 150
EMI/RFI Filtration Yes
MANAGEMENT & COMMUNICATIONSLED
Indicators
Power On, Line Mode, Battery Mode, Bypass Mode, Low Battery, Overload,
UPS Fault
Audible Alarms
Battery Mode, Low Battery, Overload, UPS Fault
PHYSICAL
Enclosure Construction Plastic
Color Black
PHYSICAL SIZE - Dimensions (WxHxD) (mm.) 95 x 220 x 307
Weight (kg.) 6.9
ENVIRONMENTAL
Operating Temperature (°F) 32 ~ 104
Operating Temperature (°C) 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ) 0 ~ 90
Operating Elevation ( feet/meters ) 0-9,843 feet (0-3,000 meters)
Storage Temperature (°C) -20 ~ 50
Storage Relative Humidity (Non-condensing) ( % ) 0 ~ 90
Storage Elevation ( feet/meters )0-9,843 feet (0-3,000 meters)
Online Thermal Dissipation ( BTU/hr ) 27
CERTIFICATIONSRoHS
Yes
WARRANTYProduct Warranty Period (Year) 2

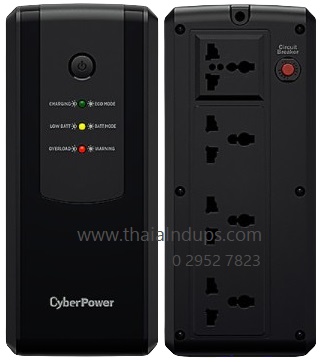

CyberPower UT1050EG
guarantees power protection for computers, networking equipment, and storage devices. The product adopts line-interactive topology with Automatic Voltage Regulation (AVR) function to offer stabilized AC power output. The patented GreenPower UPS™ Bypass design achieves ultra-low power consumption to reduce energy costs, and allows a lower operation temperature which extends battery lifespan.
The LED indicator shows the utility, battery and operating status of the UPS. It is also compatible with generators to extend power continuity. Other features include overload protection, EMI filter and configurable alarm to safeguard your devices. Its tower design allows users to place it easily on desks or other tight spaces.
FEATURES
Energy Saving Technology,Generator Compatible,Overload Protection,Configurable Alarm
Automatic Voltage Regulation (AVR),LED Status Indicator,Surge and Spike Protection,EMI and RFI Filtration
WHAT'S IN THE BOX
UT1050EG UPSUser's ManualProduct Registration Card
* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.




ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่ 088 758 4005 080 964 2745 096 308 9747 088 758 4003 088 758 4005 080 964 2745
ThailandUPS.com
ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
เครื่องสำรองไฟ
cyberpower UT1050EG
รุ่นนี้ สำรองไฟ ได้ 4 ช่องเสียบจากด้านหลังเครื่อง และแสดงสถานะผ่าน LED ด้านหน้า กำลังไฟ 630 วัตต์ รับประกันจากศูนย์ 2 ปีเต็ม ทั่วประเทศ
