Delta UPS - Amplon Family

N Series, Single Phase 1/2/3 kVA

High-performance power protection with greater energy savings

Availability

• True online double-conversion topology and zero transfer time to battery ensure high reliability
• Advanced DSP (Digital Signal Processor) controller for fast computation capability and a simplified
control circuit for enhanced stability
• Wide input voltage range allows the UPS to work in harsh electrical environments
• Generator compatibility ensures continuous and reliable power Green with Low TCO
• High input power factor (> 0.99) and low input harmonic distortion (iTHD < 3%) save upstream investment
• Output power factor up to 0.9 presents a stronger load capacity
• AC-AC efficiency up to 93% and high efficiency of 91% at 50% load results in marked energy cost savings
• Compact design saves more space for critical equipment Intelligent Management
• Excellent local communications through LCD display
• Intelligent battery management maximizes battery performance and sustains battery life
• Mini slot and USB port enhance monitoring and manageability

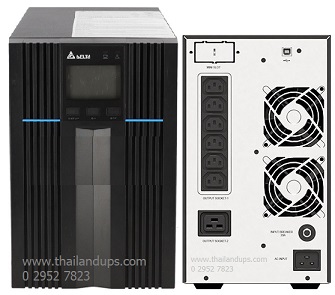

N-2000VA-3Y or N-2K model
DELTA N-SERIES - TOWER

Power Rating  2KVA/1800W  (true online double-conversion )
INPU
T
Nominal Voltage 220/230/240 Vac
Voltage range 175 ~ 280 Vac (full load); 80~175 Vac (50%-100% load)
Frequency 50/60 Hz
10 Hz
Power Factor > 0.99 (full load)
Current Harmonic Distortion <3%
OUTPUT

Power Factor 0.9
Voltage 220/230/240 Vac
Frequency 50/60 Hz
0.05 Hz
Current Harmonic Distortion < 3% (linear load)
Overload Capability < 105%: continuous;
< 105% ~ 125%:1 minutes;125% ~ 150%:30 seconds
Crest Factor  3:1
Receptacle IEC C13 x 6, C19 x 1
EFFICIENCY   Up to 93%
BATTERY

Nominal Voltage 48 Vdc
Battery type : VRLA12v9Ah, 4 pcs
Typical Backup Time 4.5 min.(full load); 13 min.(half load)
Recharge Time 3hrs to 90%
Charge Current 1A
AUDIBLE NOISE  <48 dBA
DISPLAY  LCD panel
CONFORMANCE SAFTEY & EMC CE/ RCM/
EN62040-1/ EN62040-2 Category C2
PHYSICA
L
Dimensions (Wx Dx H) 190 x 390 x 325 mm
Weight 18.6 kgs
ENVIRONMENT
Operating Temperature 0 ~ 40
C
Relative Humidity 5% ~ 95% (no condensing)
3 years warranty ( Onsite service )
Delta N-2000VA ( 2,000 Va 1800 watts ) true online ups, tower model , 3 years warranty onsite service
delta ups - is good for server, network, security, medical, pos, banking
ลูกค้าสามารถติดต่อ เพิ่มเติมได้ที่  088 758 4005    080 964 2745    096 308 9747    088 758 4003    088 758 4005    080 964 2745
World

Delta N-2000VA-3Y

ffice hours : 8:30 - 17:30 ( Monday - Friday )
Tel 0 2952 7823
เครื่องสำรองไฟ delta N-2000VA-3Y
เครื่องสำรองไฟเดลต้า
Delta UPS N-2000VA-3Y
ระบบไฟ true online เหมาะกับ computer, server และ อุปกรณ์ทางแพทย์ รวมถึงอุปกรณ์ที่กินไฟไม่เกิน 1800 วัตต์ รุ่นมีจอ LCD แสดงสถานะของเครื่อง ราคาไม่สูง สนใจสอบถามรายละเอียดได้ที่นี้เลยนะค่ะ
Package list for Delta N Series - Delta N-1000VA, Delta N-2000VA and Delta N-3000VA

Package list for Delta N Series -

Delta N-1000VA, Delta N-2000VA and Delta N-3000VA
เครื่องสำรองไฟ เดลต้า เครื่องสำรองไฟ เดลต้า
The Amplon N series is a true online double-conversion UPS that can provide your critical equipment with reliable, - delta N-1000va, N-2000va, N-3000va
NX-1K Delta UPS
Capacity : 1000VA/900W, Online
Nominal Voltage 24 Vdc
Input : IEC C14 x1
Output : IEC C13 x4
Port : USB, RS-232, mini slot
Dims : 145 x 282 x 220 mm ( 9.2Kgs  )
ราคา update บาท ( #0.00บาท VAT )
Delta N-1000VA-3Y
The Amplon N series is a true online double-conversion UPS that can provide your critical equipment with reliable, - delta N-1000va, N-2000va, N-3000va
NX-2K Delta UPS
Capacity : 2000VA/1800W, Online
Nominal Voltage 48 Vdc
Input : IEC C14 x1
Output : IEC C13 x4
Port : USB, RS-232, mini slot
Dims : 145 x 397 x 220mm ( 16.8 Kgs  )

ราคา update บาท ( #0.00บาท VAT )
Delta N-1000VA-3Y
The Amplon N series is a true online double-conversion UPS that can provide your critical equipment with reliable, - delta N-1000va, N-2000va, N-3000va
NX-3K Delta UPS

Capacity : 3000VA/2700W, Online
Nominal Voltage 72 Vdc
Input : IEC C20 x1
Output : IEC C13 x4 + Terminal
Port : USB, RS-232, mini slot
Dims : 190 x 421 x 318 mm ( 27Kgs  )
ราคา update บาท ( #0.00บาท VAT )
Delta N-1000VA-3Y
สินค้าที่จะมาแทนรุ่น N Series จะเป็นรุ่น NX GEN3 Series
สินค้าพร้อมจำหน่ายต้นปี 2025
