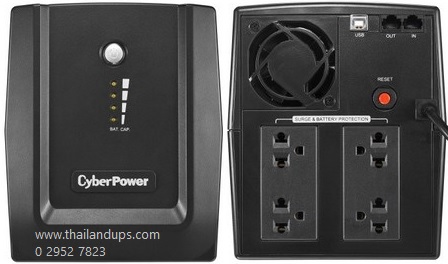

Cyberpower UT1500E

GENERALPhase Single Phase
Form Factor Tower
UPS Topology Line-interactive
INPUTGenerator Compatibility Yes
Nominal Input Voltage ( Vac ) 230 ± 10%
Input Voltage Range ( Vac ) 165 ~ 290
Input Frequency ( Hz )50 ± 10,60 ± 10
Input Frequency Detection Auto-sensing
Rated Input Current ( A ) 6.82
Input Connector Type NEMA 5-15P 　
Power Cord Length (m.) 1.2
OUTPUTCapacity (VA) 1500
Capacity (Watts) 900
On Battery Waveform Simulated Sine Wave
On Battery Voltage(s) ( Vac ) 230 ± 10%
On Battery Frequency ( Hz ) 50 ± 1%, 60 ± 1%
Automatic Voltage Regulation (AVR)
Single Boost, Single Buck
Overload Protection Circuit Breaker
Outlet(s) - Total 4
Outlet Type AS x 4 　
Outlet(s) - Battery & Surge Protected 4
Typical Transfer Time ( ms ) 4

BATTERY

Runtime at 60W ( min ) 90
Runtime at 90W ( min ) 60
Runtime at 200W ( min ) 27
Typical Recharge Time ( Hours ) 8
Start On Battery Yes
User-replaceable No
Battery Type Sealed Lead-acid
Replacement Battery Pack (RBP) RBP0089
Replacement Battery Pack (RBP) Quantity ( pcs ) 2

SURGE PROTECTION & FILTERING

Surge Suppression ( Joules ) 150
EMI/RFI Filtration Yes
Phone/Network Protection RJ11/RJ45 (Combo) 1-in, 1-out
MANAGEMENT & COMMUNICATIONSLED Indicators
Power On, Line Mode, Battery Mode, Battery Capacity, Low Battery
HID Compliant USB Port(s) 1

Audible Alarms

Battery Mode, Low Battery, Overload, UPS Fault
Management Cable ( pcs )
USB Cable x1
Power Management Software
PowerPanel Personal (Recommended)
PHYSICALEnclosure Construction
Plastic
Color Black

PHYSICAL SIZE

Dimensions (WxHxD) (mm.) 148 x 178 x 298
Weight (kg.) 9.1

ENVIRONMENTAL

Operating Temperature (°F) 32 ~ 104
Operating Temperature (°C) 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ) 0 ~ 90
Operating Elevation ( feet/meters )
0-9,843 feet (0-3,000 meters)
Storage Temperature (°C) -20 ~ 50
Storage Relative Humidity (Non-condensing) ( % )0 ~ 90
Storage Elevation ( feet/meters ) 0-9,843 feet (0-3,000 meters)
Online Thermal Dissipation ( BTU/hr )102
Audible Noise at 1.5M from Surface of Unit ( dBA )45

CERTIFICATIONSRoHS

Yes
WARRANTYProduct 2 years warranty - onsite service

CyberPower UT1500E

provides home and office users with a reliable battery backup and safeguards office PCs, network communication equipment, and other electronic devices from surges, spikes, brownouts and other power incidents.

The product is generator-compatible, which allows users flexible application scenario planning for power outages. The built-in Automatic Voltage Regulation (AVR) stabilizes the AC signal to deliver power at safe voltage levels for all connected equipment without resorting to battery power.

FEATURES

Line-interactive UPS Topology, Generator Compatible, Overload Protection,EMI and RFI Filtration,LED Status Indicator
Configurable Alarm, Tower Form Factor

Automatic Voltage Regulation (AVR),Simulated Sine Wave Output,Surge and Spike Protection,Phone/Fax/Modem/DSL/Network Protection
USB Connectivity Port,PowerPanel Management Software

WHAT'S IN THE BOX

UT1500E UPSUSB CableUser's Manual

* Product contents may vary according to different regions. For detailed information, please refer to user's manual/quick start guide.
